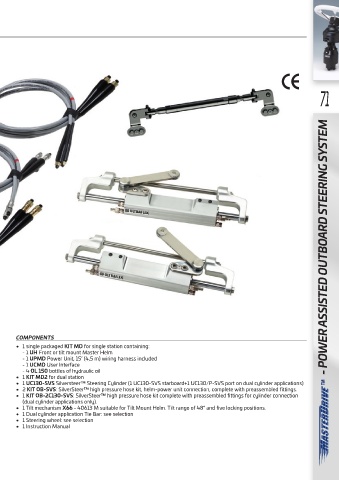

POWER ASSISTED OUTBOARD STEERING SYSTEM
71
COMPONENTS - POWER ASSISTED OUTBOARD STEERING SYSTEM
• 1 single packaged KIT MD for single station containing:
- 1 UH Front or tilt mount Master Helm
- 1 UPMD Power Unit, 15’ (4,5 m) wiring harness included
- 1 UCMD User Interface
- 4 OL 150 bottles of hydraulic oil
• 1 KIT MD2 for dual station
• 1 UC130-SVS Silversteer™ Steering Cylinder (1 UC130-SVS starboard+1 UC130/P-SVS port on dual cylinder applications) TM
• 2 KIT OB-SVS: SilverSteer™ high pressure hose kit, helm-power unit connection, complete with preassembled fittings.
• 1 KIT OB-2C130-SVS: SilverSteer™ high pressure hose kit complete with preassembled fittings for cylinder connection
(dual cylinder applications only).
• 1 Tilt mechanism X66 - 40613 M suitable for Tilt Mount Helm. Tilt range of 48° and five locking positions.
• 1 Dual cylinder application Tie Bar: see selection
• 1 Steering wheel: see selection
• 1 Instruction Manual
