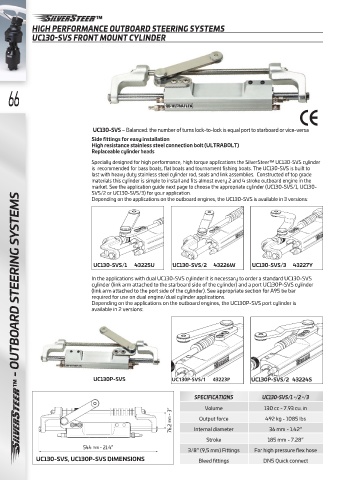

Page 68 - ULTRAFLEX Katalog 2021

HIGH PERFORMANCE OUTBOARD STEERING SYSTEMS
UC130-SVS FRONT MOUNT CYLINDER

66

UC130-SVS – Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa
Side fittings for easy installation
High resistance stainless steel connection bolt (ULTRABOLT)
Replaceable cylinder heads

Specially designed for high performance, high torque applications the SilverSteer™ UC130-SVS cylinder
is recommended for bass boats, flat boats and tournament fishing boats. The UC130-SVS is built to
last with heavy duty stainless steel cylinder rod, seals and link assemblies. Constructed of top grade
materials this cylinder is simple to install and fits almost every 2 and 4 stroke outboard engine in the
market. See the application guide next page to choose the appropriate cylinder (UC130-SVS/1, UC130-
SVS/2 or UC130-SVS/3) for your application.
- OUTBOARD STEERING SYSTEMS
Depending on the applications on the outboard engines, the UC130-SVS is available in 3 versions:

UC130-SVS/1 43225U UC130-SVS/2 43226W UC130-SVS/3 43227Y

In the applications with dual UC130-SVS cylinder it is necessary to order a standard UC130-SVS
cylinder (link arm attached to the starboard side of the cylinder) and a port UC130P-SVS cylinder
(link arm attached to the port side of the cylinder). See appropriate section for A95 tie bar
required for use on dual engine/dual cylinder applications.
Depending on the applications on the outboard engines, the UC130P-SVS port cylinder is
available in 2 versions:

UC130P-SVS UC130P-SVS/1 43223P UC130P-SVS/2 43224S

SPECIFICATIONS UC130-SVS/1 -/2 -/3

Volume 130 cc - 7.93 cu. in
76.2 mm - 3” Internal diameter 492 kg - 1085 lbs
Output force
36 mm - 1.42”

Stroke 185 mm - 7.28”
544 mm - 21.4” 3/8” (9,5 mm) Fittings For high pressure flex hose

UC130-SVS, UC130P-SVS DIMENSIONS Bleed fittings DN5 Quick connect
