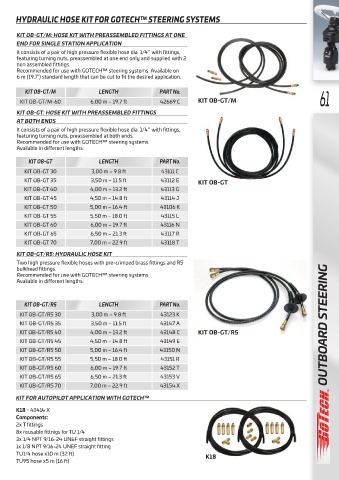

Page 63 - ULTRAFLEX Katalog 2021

HYDRAULIC HOSE KIT FOR GOTECH™ STEERING SYSTEMS

KIT OB-GT/M: HOSE KIT WITH PREASSEMBLED FITTINGS AT ONE
END FOR SINGLE STATION APPLICATION
It consists of a pair of high pressure flexible hose dia. 1/4” with fittings,
featuring turning nuts, preassembled at one end only and supplied with 2
non assembled fittings.
Recommended for use with GOTECH™ steering systems. Available on
6 m (19.7’) standard length that can be cut to fit the desired application.

KIT OB-GT/M LENGTH PART No. 61
KIT OB-GT/M-60 6,00 m – 19.7 ft 42669 C KIT OB-GT/M

KIT OB-GT: HOSE KIT WITH PREASSEMBLED FITTINGS
AT BOTH ENDS
It consists of a pair of high pressure flexible hose dia. 1/4” with fittings,
featuring turning nuts, preassembled at both ends.
Recommended for use with GOTECH™ steering systems.
Available in different lengths.
KIT OB-GT LENGTH PART No.

KIT OB-GT 30 3,00 m – 9.8 ft 43111 C
KIT OB-GT 35 3,50 m – 11.5 ft 43112 E KIT OB-GT
KIT OB-GT 40 4,00 m – 13.2 ft 43113 G
KIT OB-GT 45 4,50 m – 14.8 ft 43114 J
KIT OB-GT 50 5,00 m – 16.4 ft 43106 K
KIT OB-GT 55 5,50 m – 18.0 ft 43115 L
KIT OB-GT 60 6,00 m – 19.7 ft 43116 N
KIT OB-GT 65 6,50 m – 21.3 ft 43117 R
KIT OB-GT 70 7,00 m – 22.9 ft 43118 T

KIT OB-GT/R5: HYDRAULIC HOSE KIT
Two high pressure flexible hoses with pre-crimped brass fittings and R5
bulkhead fittings.
Recommended for use with GOTECH™ steering systems.
Available in different lengths.

KIT OB-GT/R5 LENGTH PART No.
KIT OB-GT/R5 30 3,00 m – 9.8 ft 43123 K
KIT OB-GT/R5 35 3,50 m – 11.5 ft 43147 A OUTBOARD STEERING
KIT OB-GT/R5 40 4,00 m – 13.2 ft 43148 C KIT OB-GT/R5
KIT OB-GT/R5 45 4,50 m – 14.8 ft 43149 E
KIT OB-GT/R5 50 5,00 m – 16.4 ft 43150 N
KIT OB-GT/R5 55 5,50 m – 18.0 ft 43151 R
KIT OB-GT/R5 60 6,00 m – 19.7 ft 43152 T
KIT OB-GT/R5 65 6,50 m – 21.3 ft 43153 V
KIT OB-GT/R5 70 7,00 m – 22.9 ft 43154 X
KIT FOR AUTOPILOT APPLICATION WITH GOTECH™

K18 - 43414 X
Components:
2x T fittings
8x reusable fittnigs for TU 1/4
3x 1/4 NPT 9/16-24 UNEF straight fittings
1x 1/8 NPT 9/16-24 UNEF straight fitting
TU1/4 hose x10 m (32 ft) K18
TU95 hose x5 m (16 ft)
