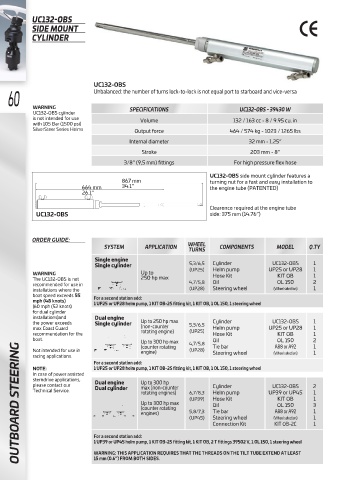

Page 62 - ULTRAFLEX Katalog 2021

UC132-OBS
SIDE MOUNT
CYLINDER

UC132-OBS
60 Unbalanced: the number of turns lock-to-lock is not equal port to starboard and vice-versa

WARNING SPECIFICATIONS UC132-OBS - 39430 W
UC132-OBS cylinder
is not intended for use Volume 132 / 163 cc - 8 / 9.95 cu. in
with 105 Bar (1500 psi)
SilverSteer Series Helms Output force 464 / 574 kg - 1023 / 1265 lbs
Internal diameter 32 mm - 1.25”
Stroke 203 mm - 8”

3/8” (9,5 mm) fittings For high pressure flex hose

UC132-OBS side mount cylinder features a
867 mm turning nut for a fast and easy installation to
664 mm 34.1” the engine tube (PATENTED)
26.1”

Clearence required at the engine tube
UC132-OBS side: 375 mm (14.76”)

ORDER GUIDE:
SYSTEM APPLICATION WHEEL COMPONENTS MODEL Q.TY
TURNS
Single engine
Single cylinder 5,3/6,5 Cylinder UC132-OBS 1
WARNING Up to (UP25) Helm pump UP25 or UP28 1 1
KIT OB
Hose Kit
The UC132-OBS is not 250 hp max
recommended for use in 4,7/5,8 Oil OL 150 2
installations where the (UP28) Steering wheel (Wheel selection) 1
boat speed exceeds 55 For a second station add:
mph (48 knots) 1 UP25 or UP28 helm pump, 1 KIT OB-2S fitting kit, 1 KIT OB, 1 OL 150, 1 steering wheel
(60 mph (52 knots)
for dual cylinder
installations)and Dual engine
the power exceeds Single cylinder Up to 250 hp max 5,3/6,5 Cylinder UC132-OBS 1
max Coast Guard (non-counter Helm pump UP25 or UP28 1
recommendation for the rotating engine) (UP25) Hose Kit KIT OB 1
boat. Up to 300 hp max 4,7/5,8 Oil OL 150 2
OUTBOARD STEERING
Not intended for use in (counter rotating (UP28) Tie bar A88 or A92 1 1
engine)
Steering wheel
racing applications. (Wheel selection)
For a second station add:
NOTE: 1 UP25 or UP28 helm pump, 1 KIT OB-2S fitting kit, 1 KIT OB, 1 OL 150, 1 steering wheel
In case of power assisted
sterndrive applications,
please contact our Dual engine Up to 300 hp Cylinder UC132-OBS 2
max (non-counter
Technical Service. Dual cylinder rotating engines) 6,7/8,3 Helm pump UP39 or UP45 1
(UP39) Hose Kit KIT OB 1
Up to 300 hp max Oil OL 150 3
(counter rotating
engines) 5,8/7,3 Tie bar A88 or A92 1
(UP45) Steering wheel (Wheel selection) 1
Connection Kit KIT OB-2C 1

For a second station add:
1 UP39 or UP45 helm pump, 1 KIT OB-2S fitting kit, 1 KIT OB, 2 T fittings 39502 V, 1 OL 150, 1 steering wheel
WARNING: THIS APPLICATION REQUIRES THAT THE THREADS ON THE TILT TUBE EXTEND AT LEAST
15 mm (0.6”) FROM BOTH SIDES.
