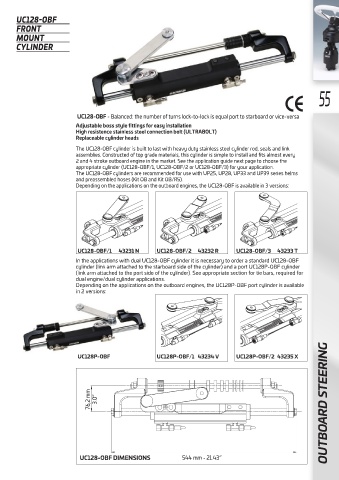

UC128-OBF
       FRONT
       MOUNT
       CYLINDER







                                                                                                                 55





                            UC128-OBF - Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa
                            Adjustable boss style fittings for easy installation
                            High resistence stainless steel connection bolt (ULTRABOLT)
                            Replaceable cylinder heads

                            The UC128-OBF cylinder is built to last with heavy duty stainless steel cylinder rod, seals and link
                            assemblies. Constructed of top grade materials, this cylinder is simple to install and fits almost every
                            2 and 4 stroke outboard engine in the market. See the application guide next page to choose the
                            appropriate cylinder (UC128-OBF/1, UC128-OBF/2 or UC128-OBF/3) for your application.
                            The UC128-OBF cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms
                            and preassembled hoses (Kit OB and Kit OB/R5).
                            Depending on the applications on the outboard engines, the UC128-OBF is available in 3 versions:












                            UC128-OBF/1    43231 N      UC128-OBF/2   43232 R       UC128-OBF/3   43233 T
                            In the applications with dual UC128-OBF cylinder it is necessary to order a standard UC128-OBF
                            cylinder (link arm attached to the starboard side of the cylinder) and a port UC128P-OBF cylinder
                            (link arm attached to the port side of the cylinder). See appropriate section for tie bars, required for
                            dual engine/dual cylinder applications.
                            Depending on the applications on the outboard engines, the UC128P-OBF port cylinder is available
                            in 2 versions:












                            UC128P-OBF                  UC128P-OBF/1  43234 V       UC128P-OBF/2  43235 X






                                 76,2 mm  3.0”                                                                      OUTBOARD STEERING












                             UC128-OBF DIMENSIONS                544 mm - 21.43”
