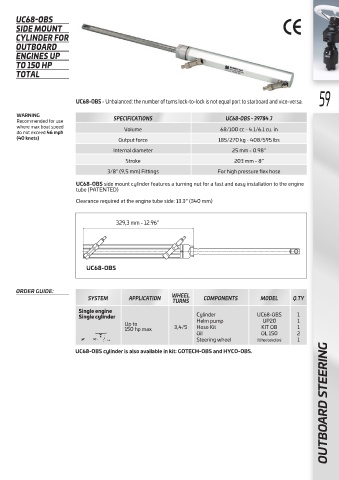

Page 61 - ULTRAFLEX Katalog 2021

UC68-OBS
SIDE MOUNT
CYLINDER FOR
OUTBOARD
ENGINES UP
TO 150 HP
TOTAL

59

UC68-OBS - Unbalanced: the number of turns lock-to-lock is not equal port to starboard and vice-versa.

WARNING
Recommended for use SPECIFICATIONS UC68-OBS - 39784 J
where max boat speed Volume 68/100 cc - 4.1/6.1 cu. in
do not exceed 46 mph
(40 knots) Output force 185/270 kg - 408/595 lbs
Internal diameter 25 mm - 0.98”
Stroke 203 mm - 8”

3/8” (9,5 mm) Fittings For high pressure flex hose

UC68-OBS side mount cylinder features a turning nut for a fast and easy installation to the engine
tube (PATENTED)
Clearance required at the engine tube side: 13.3” (340 mm)

329,3 mm - 12.96”

UC68-OBS

ORDER GUIDE:
SYSTEM APPLICATION WHEEL COMPONENTS MODEL Q.TY
TURNS
Single engine
Single cylinder Cylinder UC68-OBS 1
Up to Helm pump UP20 1
150 hp max 3,4/5 Hose Kit KIT OB 1
Oil OL 150 2
Steering wheel (Wheel selection) 1
UC68-OBS cylinder is also available in kit: GOTECH-OBS and HYCO-OBS. OUTBOARD STEERING
