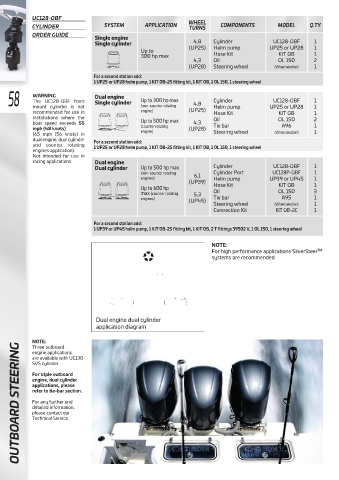

Page 60 - ULTRAFLEX Katalog 2021
P. 60

UC128-OBF
            CYLINDER                  SYSTEM        APPLICATION    WHEEL       COMPONENTS          MODEL      Q.TY
                                                                   TURNS
            ORDER GUIDE           Single engine
                                  Single cylinder                    4,8    Cylinder             UC128-OBF     1
                                                  Up to            (UP25)   Helm pump           UP25 or UP28   1
                                                  300 hp max                Hose Kit               KIT OB      1
                                                                     4,3    Oil                    OL 150      2
                                                                   (UP28)   Steering wheel       (Wheel selection)  1
                                  For a second station add:
                                  1 UP25 or UP28 helm pump, 1 KIT OB-2S fitting kit, 1 KIT OB, 1 OL 150, 1 steering wheel
    58       WARNING              Dual engine     Up to 300 hp max   4,8    Cylinder             UC128-OBF     1

             The UC128-OBF front
                                  Single cylinder
             mount cylinder is not
                                                  engine)
                                                                                                   KIT OB
             recommended for use in               (non-counter rotating   (UP25)  Helm pump     UP25 or UP28   1 1
                                                                            Hose Kit
             installations where the                                        Oil                    OL 150      2
             boat  speed  exceeds  55             Up to 500 hp max   4,3
             mph (48 knots)                       (counter rotating   (UP28)  Tie bar               A96        1
             (65  mph  (56  knots)  in            engine)                   Steering wheel       (Wheel selection)  1
             dual engine, dual cylinder   For a second station add:
             and counter rotating   1 UP25 or UP28 helm pump, 1 KIT OB-2S fitting kit, 1 KIT OB, 1 OL 150, 1 steering wheel
             engines application).
             Not intended for use in
             racing applications.  Dual engine
                                  Dual cylinder   Up to 500 hp max          Cylinder             UC128-OBF     1
                                                  (non-counter rotating   6,1  Cylinder Port     UC128P-OBF    1
                                                  engines)                  Helm pump           UP39 or UP45   1
                                                                   (UP39)
                                                  Up to 600 hp              Hose Kit               KIT OB      1
                                                  max (counter rotating   5,3  Oil                 OL 150      3
                                                  engines)         (UP45)   Tie bar                 A95        1
                                                                            Steering wheel       (Wheel selection)  1
                                                                            Connection Kit        KIT OB-2C    1

                                  For a second station add:
                                  1 UP39 or UP45 helm pump, 1 KIT OB-2S fitting kit, 1 KIT OB, 2 T fittings 39502 V, 1 OL 150, 1 steering wheel


                                                                           NOTE:
                                                                           For high performance applications SilverSteer™
                                                                           systems are recommended.











                                   Dual engine dual cylinder
                                   application diagram

            NOTE:
        OUTBOARD STEERING
            Three outboard
            engine applications
            are available with UC130-
            SVS cylinder.
            For triple outboard
            engine, dual cylinder
            applications, please
            refer to tie-bar section.
            For any further and
            detailed information,
            please contact our
            Technical Service.
