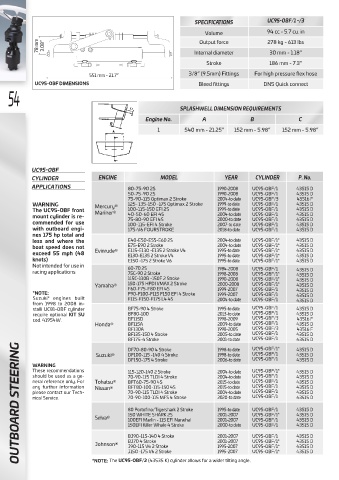

P. 56

SPECIFICATIONS            UC95-OBF/1 -/3
                                                                         Volume                94 cc - 5.7 cu. in
                                                                       Output force
              78 mm  3.08”                                           Internal diameter         278 kg - 613 lbs
                                                                                                30 mm - 1.18”
                                                                          Stroke                186 mm - 7.3”

                                551 mm - 21.7”                     3/8” (9.5mm) Fittings  For high pressure flex hose
             UC95-OBF DIMENSIONS                                       Bleed fittings         DN5 Quick connect
    54


                                                                SPLASHWELL DIMENSION REQUIREMENTS
                                                    Engine No.          A                B                C

                                                        1         540 mm - 21.25”  152 mm - 5.98”   152 mm - 5.98”






            UC95-OBF
            CYLINDER                ENGINE               MODEL                  YEAR       CYLINDER       P. No.
            APPLICATIONS                      80-75-90 2S                    1990-2008    UC95-OBF/1     43515 D
                                              50-75-90 2S                    1990-2008    UC95-OBF/1     43515 D
                                              75-90-115 Optimax 2 Stroke     2004-to date  UC95-OBF/3    43516 F
            WARNING               Mercury ®   125- 135-150 -175 Optimax 2 Stroke  1999-to date  UC95-OBF/1  43515 D
            The UC95-OBF front    Mariner ®   100-115-150 EFI 2S             1999-to date  UC95-OBF/1    43515 D
            mount cylinder is re-             40-50-60 EFI 4S                2004-to date  UC95-OBF/1    43515 D
                                                                                          UC95-OBF/1
                                              75-80-90 EFI 4S
                                                                             2000-to date
                                                                                                         43515 D
            commended for use                 100-115-EFI 4 Stroke           2007-to date  UC95-OBF/1    43515 D
            with outboard engi-               175-V6 FOURSTROKE              2018-to date  UC95-OBF/1    43515 D
            nes 175 hp total and
            less  and  where  the             E40-E50-E55-E60 2S             2004-to date  UC95-OBF/1*   43515 D
            boat speed does not               E75-E90 2 Stroke               2004-to date  UC95-OBF/1*   43515 D
                                                                                          UC95-OBF/1*
                                              E115-E130 -E135 2 Stroke V4
                                                                             1995-to date
                                                                                                         43515 D
            exceed 55 mph (48     Evinrude ®  E130-E135 2 Stroke V4          1995-to date  UC95-OBF/1*   43515 D
            knots)                            E150 -175 2 Stroke V6          1995-to date  UC95-OBF/1*   43515 D
            Not intended for use in           60-70 2S                       1984-2008    UC95-OBF/1
            racing applications               75C-90 2 Stroke                1998-2008    UC95-OBF/1*    43515 D
                                                                                                         43515 D
                                              115C-130B -150F 2 Stroke       1990-2008    UC95-OBF/1*    43515 D
                                  Yamaha ®    150-175 HPDI VMAX 2 Stroke     2000-2008    UC95-OBF/1*    43515 D
                                              F60-F75-F80 EFI 4S
                                                                                          UC95-OBF/1
                                                                             1999-2007
             *NOTE:                           F90-F100-F115 F150 EFI 4 Stroke  1999-2007  UC95-OBF/1     43515 D
                                                                                                         43515 D
             Suzuki  engines built            F115-F150-F175 L4 4S           2004-to date  UC95-OBF/1    43515 D
                  ®
             from 1998 to 2008 in-
             stalli UC81-OBF cylinder         BF75-90 4 Stroke               1995-to date  UC95-OBF/1    43515 D
             require  optional  KIT SU        BF80-100                       2013-to date  UC95-OBF/1    43515 D
             cod. 41954W.                     BF115D                         1998-2009    UC95-OBF/3     43516 F
                                  Honda ®     BF115A                         2009-to date  UC95-OBF/1    43515 D
                                              BF130A                         1998-2005    UC95-OBF/3     43516 F
                                              BF135-150 4 Stroke             2005-to date  UC95-OBF/1    43515 D
                                              BF175-4 Stroke                 2001-to date  UC95-OBF/1    43515 D
        OUTBOARD STEERING
                                              DF70-80-90 4 Stroke            1998-to date  UC95-OBF/1*   43515 D
                                   Suzuki ®   DF100-115 -140 4 Stroke        1998-to date  UC95-OBF/1    43515 D
                                              DF150-175 4 Stroke             2006-to date  UC95-OBF/1    43515 D
            WARNING
            These recommendations             115-120-140 2 Stroke           2004-to date  UC95-OBF/1*   43515 D
            should be used as a ge-           70-90-115 TLDI 4 Stroke        2004-to date  UC95-OBF/1    43515 D
            neral reference only. For   Tohatsu ®  BFT60-75-90 4S            2015-to date  UC95-OBF/1    43515 D
            any further information   Nissan ®  BFT80-100-115-150 4S         2015-to date  UC95-OBF/1    43515 D
            please contact our Tech-          70-90-115 TLDI 4 Stroke        2004-to date  UC95-OBF/1    43515 D
            nical Service.                    70-90-100-115 MFS 4 Stroke     2020-to date  UC95-OBF/1    43515 D
                                              80 Portofino/Tigershark 2 Stroke  1995-to date  UC95-OBF/1  43515 D
                                  Selva ®     150 WHITE SHARK 2S             2001-2007    UC95-OBF/1*    43515 D
                                                                                                         43515 D
                                                                                          UC95-OBF/1
                                              100EFI Marlin - 115 EFI Narwhal
                                                                             2001-2007
                                              150EFI Killer Whale 4 Stroke   2000-to date  UC95-OBF/1    43515 D
                                              BJ90-115-140 4 Stroke          2001-2007    UC95-OBF/1     43515 D
                                  Johnson ®   BJ70 4 Stroke                  2001-2007    UC95-OBF/1*    43515 D
                                              J90-115 V4 2 Stroke
                                                                                                         43515 D
                                                                                          UC95-OBF/1*
                                                                             1995-2007
                                              J150 -175 V6 2 Stroke          1995-2007    UC95-OBF/1*    43515 D
                                 *NOTE: The UC95-OBF/2 (43535 K) cylinder allows for a wider tilting angle.
