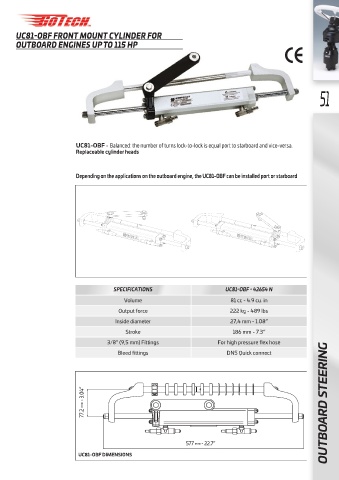

UC81-OBF FRONT MOUNT CYLINDER FOR
       OUTBOARD ENGINES UP TO 115 HP








                                                                                                                 51











                            UC81-OBF - Balanced: the number of turns lock-to-lock is equal port to starboard and vice-versa.
                            Replaceable cylinder heads




                            Depending on the applications on the outboard engine, the UC81-OBF can be installed port or starboard






















                                         SPECIFICATIONS                         UC81-OBF - 42654 N

                                             Volume                               81 cc - 4.9 cu. in
                                           Output force                           222 kg - 489 lbs

                                          Inside diameter                         27,4 mm - 1.08”
                                             Stroke                                186 mm - 7.3”
                                       3/8” (9,5 mm) Fittings                For high pressure flex hose
                                          Bleed fittings                         DN5 Quick connect






                              3.04"
                              77.2 mm - 3.04”  mm -  77.2                                                           OUTBOARD STEERING









                                                                  577 mm - 22.7”
                                                                  577 mm - 22.7"
                             UC81-OBF DIMENSIONS
