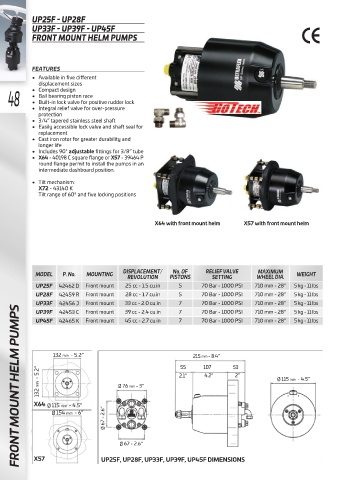

UP25F - UP28F
            UP33F - UP39F - UP45F
            FRONT MOUNT HELM PUMPS





            FEATURES
            •  Available in five different
               displacement sizes
    48      •  Compact design
            •  Ball bearing piston race
            •  Built-in lock valve for positive rudder lock
            •  Integral relief valve for over-pressure
               protection
            •  3/4” tapered stainless steel shaft
            •  Easily accessible lock valve and shaft seal for
               replacement
            •  Cast iron rotor for greater durability and
               longer life
            •  Includes 90° adjustable fittings for 3/8” tube
            •  X64 - 40198 C square flange or X57 - 39464 P
               round flange permit to install the pumps in an
               intermediate dashboard position.

            •  Tilt mechanism:
               X72 - 43140 K
               Tilt range of 60º and five locking positions




                                                       X64 with front mount helm       X57 with front mount helm








                                                              No. OF
                                                                                            MAXIMUM
              MODEL    P. No.  MOUNTING     DISPLACEMENT/    PISTONS     RELIEF VALVE      WHEEL DIA.    WEIGHT
                                                                            SETTING
                                              REVOLUTION
              UP25F   42462 D  Front mount   25 cc - 1.5 cu.in  5       70 Bar - 1000 PSI  710 mm - 28”  5 kg - 11 lbs
              UP28F   42459 R  Front mount   28 cc - 1.7 cu.in  5       70 Bar - 1000 PSI  710 mm - 28”  5 kg - 11 lbs
              UP33F   42456 J  Front mount   33 cc - 2.0 cu.in  7       70 Bar - 1000 PSI  710 mm - 28”  5 kg - 11 lbs
        FRONT MOUNT HELM PUMPS
              UP39F   42453 C  Front mount   39 cc - 2.4 cu.in  7       70 Bar - 1000 PSI  710 mm - 28”  5 kg - 11 lbs
              UP45F   42465 K  Front mount   45 cc - 2.7 cu.in  7       70 Bar - 1000 PSI  710 mm - 28”  5 kg - 11 lbs






                    132 mm  - 5.2”                              55    215 mm - 8.4”  53

                                                                         107
               132 mm  - 5.2”              Ø 76 mm - 3”         2.1”     4.2“       2”            Ø 115 mm  - 4.5”





             X64  Ø 115 mm  - 4.5”
                                      Ø 67 - 2.6”
                   Ø 154 mm  - 6”




                                           Ø 67 - 2.6”


             X57                     UP25F, UP28F, UP33F, UP39F, UP45F DIMENSIONS
