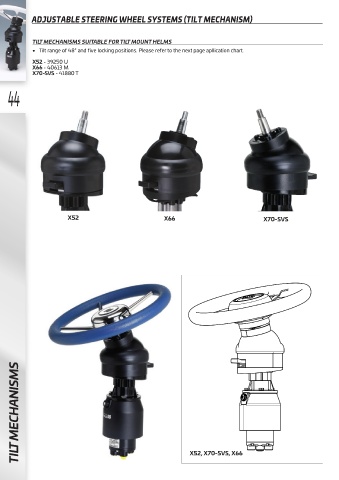

ADJUSTABLE STEERING WHEEL SYSTEMS (TILT MECHANISM)



            TILT MECHANISMS SUITABLE FOR TILT MOUNT HELMS
            •  Tilt range of 48° and five locking positions. Please refer to the next page apllication chart.

            X52 - 39250 U
            X66 - 40613 M
            X70-SVS - 41880 T

    44



























                         X52                               X66                                X70-SVS






























       T MECHANISMS

















       TIL                                                          X52, X70-SVS, X66
