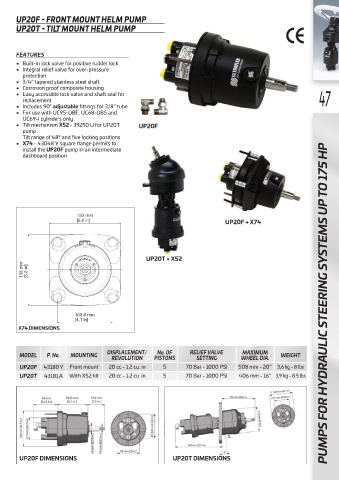

UP20F - FRONT MOUNT HELM PUMP
UP20T - TILT MOUNT HELM PUMP

FEATURES
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure
protection
• 3/4” tapered stainless steel shaft
• Corrosion proof composite housing
• Easy accessible lock valve and shaft seal for 47
replacement
• Includes 90° adjustable fittings for 3/8” tube
• For use with UC95-OBF, UC68-OBS and
UC69-I cylinders only
• Tilt mechanism X52 - 39250 U for UP20T UP20F
pump
Tilt range of 48º and five locking positions
• X74 - 43048 Y square flange permits to
install the UP20F pump in an intermediate
dashboard position

133 mm
[5.2 in] UP20F + X74

UP20T + X52
mm in]
133 [5,2

103.6 mm PUMPS FOR HYDRAULIC STEERING SYSTEMS UP TO 175 HP
[4,1 in]
X74 DIMENSIONS

MAXIMUM
No. OF
MODEL P. No. MOUNTING DISPLACEMENT/ PISTONS RELIEF VALVE WHEEL DIA. WEIGHT
REVOLUTION
SETTING
UP20F 43180 Y Front mount 20 cc - 1.2 cu. in 5 70 Bar - 1000 PSI 508 mm - 20” 3,6 kg - 8 lbs
UP20T 43181 A With X52 tilt 20 cc - 1.2 cu. in 5 70 Bar - 1000 PSI 406 mm - 16” 3,9 kg - 8.5 lbs

UP20F DIMENSIONS UP20T DIMENSIONS
