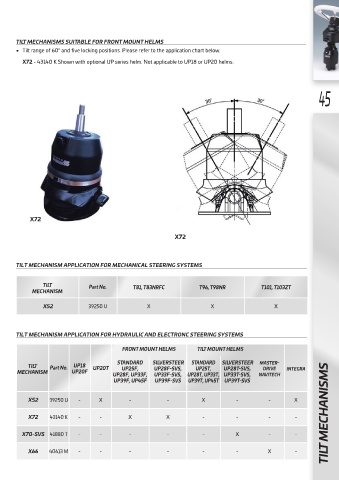

TILT MECHANISMS SUITABLE FOR FRONT MOUNT HELMS
       •  Tilt range of 60° and five locking positions. Please refer to the application chart below.

          X72 - 43140 K Shown with optional UP series helm. Not applicable to UP18 or UP20 helms.



                                                                                                                 45



























            X72


                                                              X72




       TILT MECHANISM APPLICATION FOR MECHANICAL STEERING SYSTEMS



                TILT            Part No.        T81, T83NRFC           T96, T98NR            T101, T103ZT
            MECHANISM

                X52             39250 U              X                     X                     X




       TILT MECHANISM APPLICATION FOR HYDRAULIC AND ELECTRONC STEERING SYSTEMS


                                            FRONT MOUNT HELMS         TILT MOUNT HELMS
                                          STANDARD     SILVERSTEER   STANDARD   SILVERSTEER   MASTER-
           TILT    Part No.  UP18  UP20T    UP25F,     UP28F-SVS,     UP25T,    UP28T-SVS,   DRIVE    INTEGRA
       MECHANISM          UP20F          UP28F, UP33F,   UP33F-SVS,  UP28T, UP33T,  UP33T-SVS,   NAVITECH
                                         UP39F, UP45F  UP39F-SVS   UP39T, UP45T  UP39T-SVS



           X52    39250 U    -      X         -             -           X           -          -        X           T MECHANISMS

           X72     43140 K   -      -         X            X            -           -          -         -


         X70-SVS   41880 T   -      -         -             -           -           X          -         -


                                                                                                                    TIL
           X66    40613 M    -      -         -             -           -           -          X         -
