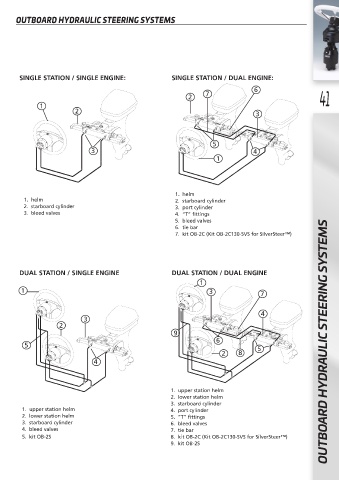

OUTBOARD HYDRAULIC STEERING SYSTEMS

SINGLE STATION / SINGLE ENGINE: SINGLE STATION / DUAL ENGINE:

6
2 7 41
1
2 3

5
3 4
1

1. helm
1. helm 2. starboard cylinder
2. starboard cylinder 3. port cylinder
3. bleed valves 4. “T” fittings
5. bleed valves
6. tie bar
7. kit OB-2C (Kit OB-2C130-SVS for SilverSteer™)

DUAL STATION / SINGLE ENGINE DUAL STATION / DUAL ENGINE
1
1 3 7

4
3
2
9
6 OUTBOARD HYDRAULIC STEERING SYSTEMS
5 5
2 8
4

1. upper station helm
2. lower station helm
3. starboard cylinder
1. upper station helm 4. port cylinder
2. lower station helm 5. “T” fittings
3. starboard cylinder 6. bleed valves
4. bleed valves 7. tie bar
5. kit OB-2S 8. kit OB-2C (Kit OB-2C130-SVS for SilverSteer™)
9. kit OB-2S
