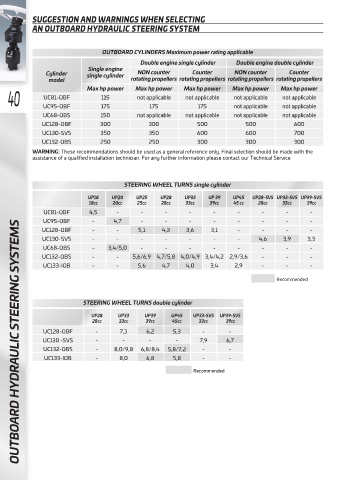

SUGGESTION AND WARNINGS WHEN SELECTING
AN OUTBOARD HYDRAULIC STEERING SYSTEM

OUTBOARD CYLINDERS Maximum power rating applicable

Double engine single cylinder Double engine double cylinder
Single engine
Cylinder single cylinder NON counter Counter NON counter Counter
model rotating propellers rotating propellers rotating propellers rotating propellers
40 UC81-OBF Max hp power Max hp power Max hp power Max hp power Max hp power
not applicable
not applicable
not applicable
115
not applicable
175
175
175
UC95-OBF
not applicable
not applicable
UC68-OBS 150 not applicable not applicable not applicable not applicable
UC128-OBF 300 300 500 500 600
UC130-SVS 350 350 600 600 700
UC132-OBS 250 250 300 300 300
WARNING: These recommendations should be used as a general reference only. Final selection should be made with the
assistance of a qualified installation technician. For any further information please contact our Technical Service

STEERING WHEEL TURNS single cylinder
UP18 UP20 UP25 UP28 UP33 UP 39 UP45 UP28-SVS UP33-SVS UP39-SVS
18cc 20cc 25cc 28cc 33cc 39cc 45 cc 28cc 33cc 39cc
UC81-OBF 4,5 - - - - - - - - -
UC95-OBF - 4,7 - - - - - - - -
OUTBOARD HYDRAULIC STEERING SYSTEMS
UC128-OBF - - 5,1 4,3 3,6 3,1 - - - -
UC130-SVS - - - - - - - 4,6 3,9 3,3
UC68-OBS - 3,4/5,0 - - - - - - - -
UC132-OBS - - 5,6/6,9 4,7/5,8 4,0/4,9 3,4/4,2 2,9/3,6 - - -
UC133-IOB - - 5,6 4,7 4,0 3,4 2,9 - - -

Recommended

STEERING WHEEL TURNS double cylinder

UP28 UP33 UP39 UP45 UP33-SVS UP39-SVS
28cc 33cc 39cc 45cc 33cc 39cc
UC128-OBF - 7,3 6,2 5,3 - -
UC130 -SVS - - - - 7,9 6,7
UC132-OBS - 8,0/9,8 6,8/8,4 5,8/7,2 - -
UC133-IOB - 8,0 6,8 5,8 - -
Recommended
