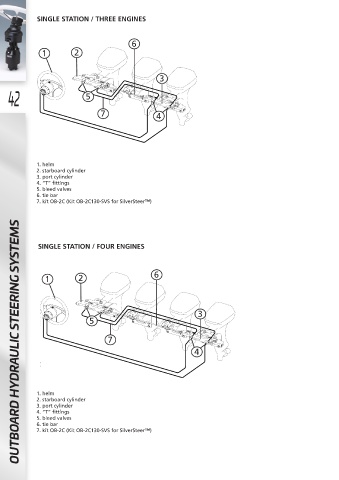

SINGLE STATION / THREE ENGINES

6
1 2

3
42 5

7 4

1. helm
2. starboard cylinder
3. port cylinder
4. “T” ﬁttings
5. bleed valves
6. tie bar
7. kit OB-2C (Kit OB-2C130-SVS for SilverSteer™)

OUTBOARD HYDRAULIC STEERING SYSTEMS

SINGLE STATION / FOUR ENGINES

1 2 6

3
5

1. helm
2. starboard cylinder
3. port cylinder
4. “T” ﬁttings
5. bleed valves
6. tie bar
7. kit OB-2C (Kit OB-2C130-SVS for SilverSteer™)
