P. 48

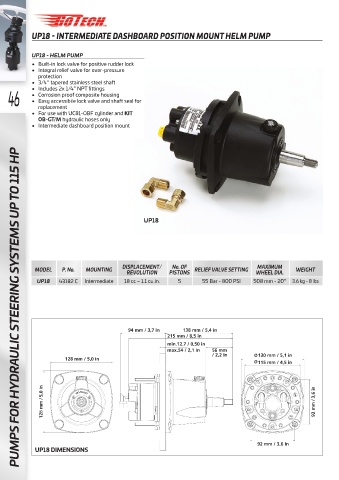

UP18 - INTERMEDIATE DASHBOARD POSITION MOUNT HELM PUMP
UP18 - HELM PUMP
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure
protection
• 3/4” tapered stainless steel shaft
46 • Corrosion proof composite housing
• Includes 2x 1/4” NPT fittings
• Easy accessibile lock valve and shaft seal for
replacement
• For use with UC81-OBF cylinder and KIT
OB-GT/M hydraulic hoses only
• Intermediate dashboard position mount
PUMPS FOR HYDRAULIC STEERING SYSTEMS UP TO 115 HP
UP18
No. OF
MAXIMUM
MODEL P. No. MOUNTING DISPLACEMENT/ PISTONS RELIEF VALVE SETTING WHEEL DIA. WEIGHT
REVOLUTION
UP18 43182 C Intermediate 18 cc – 1.1 cu.in. 5 55 Bar - 800 PSI 508 mm - 20” 3.6 kg - 8 lbs
94 mm / 3,7 in 138 mm / 5,4 in
215 mm / 8,5 in
min.12.7 / 0,50 in
max.54 / 2,1 in 56 mm
/ 2,2 in Ø130 mm / 5,1 in
128 mm / 5,0 in
Ø 115 mm / 4,5 in
in in
mm / 5,0 ,6 mm / 3
128 92
92 mm / 3,6 in
UP18 DIMENSIONS
