P. 52

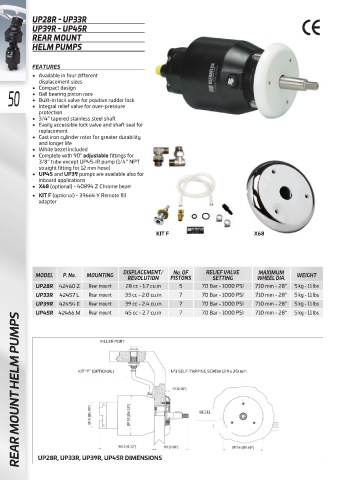

UP28R - UP33R
            UP39R - UP45R
            REAR MOUNT
            HELM PUMPS



            FEATURES
            •  Available in four different
              •  Compact design
               displacement sizes
    50      •  Ball bearing piston race
            •  Built-in lock valve for positive rudder lock
            •  Integral relief valve for over-pressure
               protection
            •  3/4” tapered stainless steel shaft
            •  Easily accessible lock valve and shaft seal for
               replacement
            •  Cast iron cylinder rotor for greater durability
               and longer life
            •  White bezel included
            •  Complete with 90° adjustable fittings for
               3/8” tube except UP45-IR pump (1/4” NPT
               straight fitting for 12 mm hose)
            •  UP45 and UP39 pumps are available also for
               inboard applications
            •  X68 (optional) - 40894 Z Chrome bezel
            •  KIT F (optional) - 39664 Y Remote fill
               adapter





                                                         KIT F                             X68







                                                              No. OF
                                                                                            MAXIMUM
              MODEL    P. No.   MOUNTING    DISPLACEMENT/    PISTONS     RELIEF VALVE      WHEEL DIA.    WEIGHT
                                                                            SETTING
                                              REVOLUTION
              UP28R   42460 Z   Rear mount   28 cc - 1.7 cu.in  5       70 Bar - 1000 PSI  710 mm - 28”  5 kg - 11 lbs
              UP33R   42457 L   Rear mount   33 cc - 2.0 cu.in  7       70 Bar - 1000 PSI  710 mm - 28”  5 kg - 11 lbs
              UP39R   42454 E   Rear mount   39 cc - 2.4 cu.in  7       70 Bar - 1000 PSI  710 mm - 28”  5 kg - 11 lbs
              UP45R   42466 M   Rear mount   45 cc - 2.7 cu.in  7       70 Bar - 1000 PSI  710 mm - 28”  5 kg - 11 lbs
        REAR MOUNT HELM PUMPS



                                    FILLER PORT





                             KIT “F” (OPTIONAL)              N°3 SELF-TAPPING SCREW (2.9 x 25) mm







                                                                       BEZEL







              UP28R, UP33R, UP39R, UP45R DIMENSIONS
