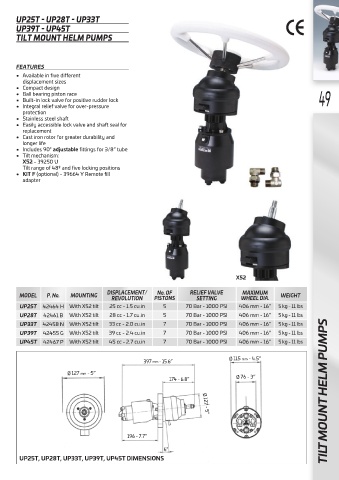

Page 51 - ULTRAFLEX Katalog 2021

UP25T - UP28T - UP33T
UP39T - UP45T
TILT MOUNT HELM PUMPS

FEATURES
• Available in five different
displacement sizes
• Compact design
• Ball bearing piston race 49
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure
protection
• Stainless steel shaft
• Easily accessible lock valve and shaft seal for
replacement
• Cast iron rotor for greater durability and
longer life
• Includes 90° adjustable fittings for 3/8” tube
• Tilt mechanism:
X52 - 39250 U
Tilt range of 48º and five locking positions
• KIT F (optional) - 39664 Y Remote fill
adapter

X52

MAXIMUM
No. OF
MODEL P. No. MOUNTING DISPLACEMENT/ PISTONS RELIEF VALVE WHEEL DIA. WEIGHT
REVOLUTION
SETTING
UP25T 42464 H With X52 tilt 25 cc - 1.5 cu.in 5 70 Bar - 1000 PSI 406 mm - 16” 5 kg - 11 lbs
UP28T 42461 B With X52 tilt 28 cc - 1.7 cu.in 5 70 Bar - 1000 PSI 406 mm - 16” 5 kg - 11 lbs
UP33T 42458 N With X52 tilt 33 cc - 2.0 cu.in 7 70 Bar - 1000 PSI 406 mm - 16” 5 kg - 11 lbs
UP39T 42455 G With X52 tilt 39 cc - 2.4 cu.in 7 70 Bar - 1000 PSI 406 mm - 16” 5 kg - 11 lbs
UP45T 42467 P With X52 tilt 45 cc - 2.7 cu.in 7 70 Bar - 1000 PSI 406 mm - 16” 5 kg - 11 lbs

397 mm - 15.6” Ø 115 mm - 4.5”

Ø 127 mm - 5”
174 - 6.8” Ø 127 - 5” Ø 76 - 3” T MOUNT HELM PUMPS

196 - 7.7”

6°
UP25T, UP28T, UP33T, UP39T, UP45T DIMENSIONS TIL
