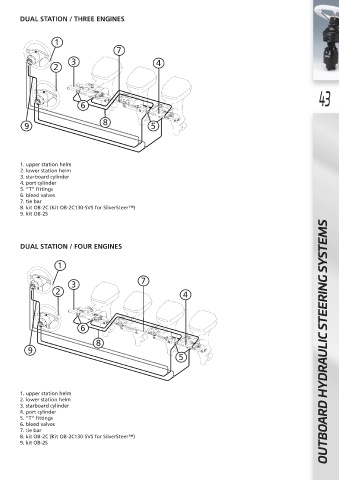

DUAL STATION / THREE ENGINES



                    1
                                          7
                          3                             4
                    2


                                                                                                                 43


                             6


          9                          8                5







        1. upper station helm
        2. lower station helm
        3. starboard cylinder
        4. port cylinder
        5. “T” fittings
        6. bleed valves
        7. tie bar
        8. kit OB-2C (Kit OB-2C130-SVS for SilverSteer™)
        9. kit OB-2S





        DUAL STATION / FOUR ENGINES


                     1


                          3                        7
                     2                                           4






                             6

                                   8                                                                                OUTBOARD HYDRAULIC STEERING SYSTEMS
           9
                                                                5







        1. upper station helm
        2. lower station helm
        3. starboard cylinder
        4. port cylinder
        5. “T” fittings
        6. bleed valves
        7. tie bar
        8. kit OB-2C (Kit OB-2C130-SVS for SilverSteer™)
        9. kit OB-2S
