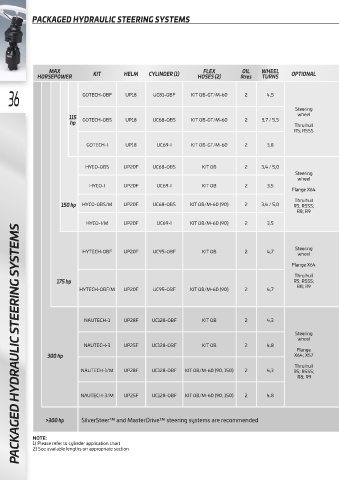

PACKAGED HYDRAULIC STEERING SYSTEMS

MAX FLEX OIL WHEEL
HORSEPOWER KIT HELM CYLINDER (1) HOSES (2) litres TURNS OPTIONAL
36 GOTECH-OBF UP18 UC81-OBF KIT OB-GT/M-60 2 4,5

Steering
115 GOTECH-OBS UP18 UC68-OBS KIT OB-GT/M-60 2 3,7 / 5,5 wheel
hp Thru hull
R5; R5SS

GOTECH-I UP18 UC69-I KIT OB-GT/M-60 2 3,8

HYCO-OBS UP20F UC68-OBS KIT OB 2 3,4 / 5,0
Steering
wheel
HYCO-I UP20F UC69-I KIT OB 2 3,5
Flange X64
Thru hull
150 hp HYCO-OBS/M UP20F UC68-OBS KIT OB/M-60 (90) 2 3,4 / 5,0 R5; R5SS;
R8; R9
HYCO-I/M UP20F UC69-I KIT OB/M-60 (90) 2 3,5
PACKAGED HYDRAULIC STEERING SYSTEMS

Steering
HYTECH-OBF UP20F UC95-OBF KIT OB 2 4,7 wheel
Flange X64

Thru hull
175 hp R5; R5SS;
HYTECH-OBF/M UP20F UC95-OBF KIT OB/M-60 (90) 2 4,7 R8; R9

NAUTECH-1 UP28F UC128-OBF KIT OB 2 4,3
Steering
wheel
NAUTECH-3 UP25F UC128-OBF KIT OB 2 4,8
Flange
300 hp X64; X57

Thru hull
NAUTECH-1/M UP28F UC128-OBF KIT OB/M-60 (90, 150) 2 4,3 R5; R5SS;
R8; R9

NAUTECH-3/M UP25F UC128-OBF KIT OB/M-60 (90, 150) 2 4,8

>300 hp SilverSteer™ and MasterDrive™ steering systems are recommended

NOTE:
1) Please refer to cylinder application chart
2) See available lengths on appropriate section
