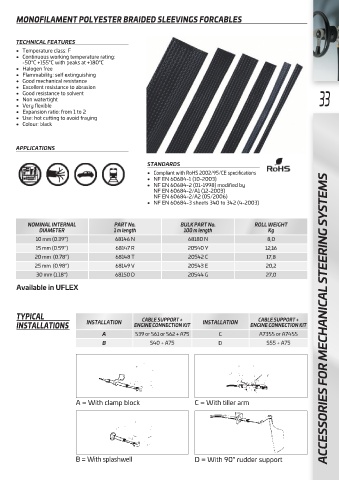

MONOFILAMENT POLYESTER BRAIDED SLEEVINGS FORCABLES



       TECHNICAL FEATURES
       •  Temperature class: F
       •  Continuous working temperature rating:
         -50°C +155°C with peaks at +180°C
       •  Halogen free
       •  Flammability: self extinguishing
       •  Good mechanical resistance
       •  Excellent resistance to abrasion
       •  Good resistance to solvent                                                                             33
       •  Non watertight
       •  Very flexible
       •  Expansion ratio: from 1 to 2
       •  Use: hot cutting to avoid fraying
       •  Colour: black




       APPLICATIONS

                                                     STANDARDS
                                                     •  Compliant with RoHS 2002/95/CE specifications
                                                     •  NF EN 60684-1 (10-2003)
                                                     •  NF EN 60684-2 (01-1998) modified by
                                                        NF EN 60684-2/A1 (12-2003)
                                                       NF EN 60684-2/A2 (05/2006)
                                                     •  NF EN 60684-3 sheets 340 to 342 (4-2003)


           NOMINAL INTERNAL              PART No.               BULK PART No.             ROLL WEIGHT
               DIAMETER                  1 m length               100 m length                 Kg
              10 mm (0.39”)              68146 N                   68180 N                     8,0
              15 mm (0.59”)               68147 R                  20540 Y                    12,16
             20 mm  (0.78”)               68148 T                  20542 C                     17,8
             25 mm  (0.98”)               68149 V                  20543 E                    20,2
              30 mm (1.18”)              68150 D                   20544 G                    27,0

       Available in UFLEX




       TYPICAL                                     CABLE SUPPORT +                          CABLE SUPPORT +         ACCESSORIES FOR MECHANICAL STEERING SYSTEMS
       INSTALLATIONS           INSTALLATION     ENGINE CONNECTION KIT   INSTALLATION     ENGINE CONNECTION KIT
                                     A          S39 or S61 or S62 + A75       C             A73SS or A74SS
                                     B                S40 + A75               D                S55 + A75











                            A = With clamp block                     C = With tiller arm











                            B = With splashwell                      D = With 90° rudder support
