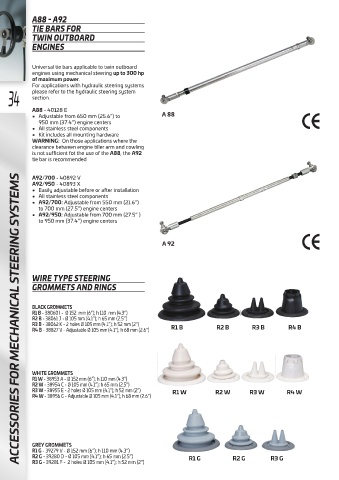

Page 36 - ULTRAFLEX Katalog 2021

A88 - A92
TIE BARS FOR
TWIN OUTBOARD
ENGINES

Universal tie bars applicable to twin outboard
engines using mechanical steering up to 300 hp
of maximum power.
For applications with hydraulic steering systems
34 please refer to the hydraulic steering system
section.

A88 - 40128 E
• Adjustable from 650 mm (25.6”) to A 88
950 mm (37.4”) engine centers
• All stainless steel components
• Kit includes all mounting hardware
WARNING: On those applications where the
clearance between engine tiller arm and cowling
is not sufficient fot the use of the A88, the A92
tie bar is recommended

ACCESSORIES FOR MECHANICAL STEERING SYSTEMS
A92/700 - 40892 V
A92/950 - 40893 X
• Easily adjustable before or after installation
• All stainless steel components
• A92/700: Adjustable from 550 mm (21.6”)
to 700 mm (27.5”) engine centers
• A92/950: Adjustable from 700 mm (27.5” )
to 950 mm (37.4”) engine centers

A 92

WIRE TYPE STEERING
GROMMETS AND RINGS

BLACK GROMMETS
R1 B - 38060 I - Ø 152 mm (6”); h 110 mm (4.3”)
R2 B - 38061 J - Ø 105 mm (4.1”); h 65 mm (2.5”)
R3 B - 38062 K - 2 holes Ø 105 mm (4.1”); h 52 mm (2”) R1 B R2 B R3 B R4 B
R4 B - 38827 V - Adjustable Ø 105 mm (4.1”); h 68 mm (2.6”)

WHITE GROMMETS
R1 W - 38953 A - Ø 152 mm (6”); h 110 mm (4.3”)
R2 W - 38954 C - Ø 105 mm (4.1”); h 65 mm (2.5”)
R3 W - 38955 E - 2 holes Ø 105 mm (4.1”); h 52 mm (2”) R1 W R2 W R3 W R4 W
R4 W - 38956 G - Adjustable Ø 105 mm (4.1”); h 68 mm (2.6”)

GREY GROMMETS
R1 G - 39279 V - Ø 152 mm (6”); h 110 mm (4.3”)
R2 G - 39280 D - Ø 105 mm (4.1”); h 65 mm (2.5”) R1 G R2 G R3 G
R3 G - 39281 F - 2 holes Ø 105 mm (4.1”); h 52 mm (2”)
