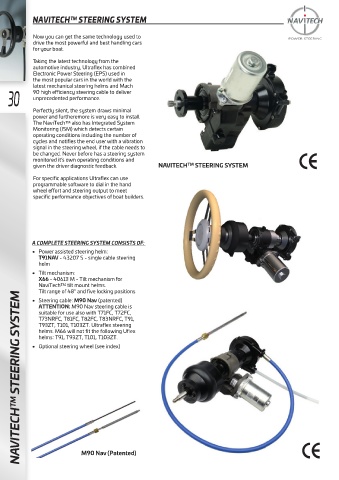

NAVITECH™ STEERING SYSTEM


             Now you can get the same technology used to
             drive the most powerful and best handling cars
             for your boat.

             Taking the latest technology from the
             automotive industry, Ultraflex has combined
             Electronic Power Steering (EPS) used in
             the most popular cars in the world with the
             latest mechanical steering helms and Mach
    30       90 high efficiency steering cable to deliver
             unprecedented performance.

             Perfectly silent, the system draws minimal
             power and furtheremore is very easy to install.
             The NaviTech TM  also has Integrated System
             Monitoring (ISM) which detects certain
             operating conditions including the number of
             cycles and notifies the end user with a vibration
             signal in the steering wheel, if the cable needs to
             be changed. Never before has a steering system
             monitored it’s own operating conditions and
             given the driver diagnostic feedback.       NAVITECH  TM  STEERING SYSTEM

             For specific applications Ultraflex can use
             programmable software to dial in the hand
             wheel effort and steering output to meet
             specific performance objectives of boat builders.







            A COMPLETE STEERING SYSTEM CONSISTS OF:
            •  Power assisted steering helm:
               T91NAV - 43207 S - single cable steering
               helm
            •  Tilt mechanism:
               X66 - 40613 M - Tilt mechanism for
               NaviTech TM  tilt mount helms.
               Tilt range of 48° and five locking positions
        NAVITECH™ STEERING SYSTEM
            •  Steering cable: M90 Nav (patented)
               ATTENTION: M90 Nav steering cable is
               suitable for use also with T71FC, T72FC,
               T73NRFC, T81FC, T82FC, T83NRFC, T91,
               T93ZT, T101, T103ZT. Ultraflex steering
               helms. M66 will not fit the following Uflex
               helms: T91, T93ZT, T101, T103ZT.
            •  Optional steering wheel (see index)





















                              M90 Nav (Patented)
