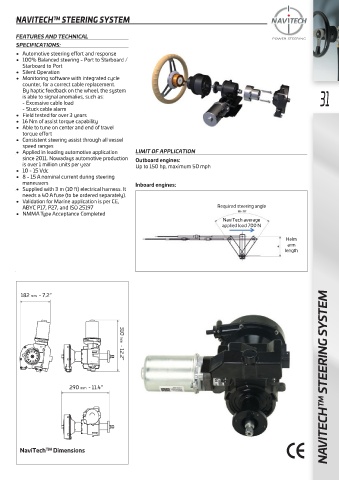

NAVITECH™ STEERING SYSTEM
FEATURES AND TECHNICAL
SPECIFICATIONS:
• Automotive steering effort and response
• 100% Balanced steering - Port to Starboard /
Starboard to Port
• Silent Operation
• Monitoring software with integrated cycle
counter, for a correct cable replacement.
By haptic feedback on the wheel, the system
is able to signal anomalies, such as: 31
- Excessive cable load
- Stuck cable alarm
• Field tested for over 3 years
• 16 Nm of assist torque capability
• Able to tune on center and end of travel
torque effort
• Consistent steering assist through all vessel
speed ranges
• Applied in leading automotive application LIMIT OF APPLICATION
since 2011. Nowadays automotive production Outboard engines:
is over 1 million units per year Up to 150 hp, maximum 50 mph
• 10 - 15 Vdc
• 8 - 15 A nominal current during steering
maneuvers Inboard engines:
• Supplied with 3 m (10 ft) electrical harness. It
needs a 40 A fuse (to be ordered separately).
• Validation for Marine application is per CE,
ABYC P17, P27, and ISO 25197 Required steering angle
• NMMA Type Acceptance Completed
NaviTech average
applied load 700 N
Helm
arm
length
182 mm - 7.2”
290 mm - 11.4” 310 mm - 12.2” NAVITECH™ STEERING SYSTEM
NaviTech TM Dimensions
