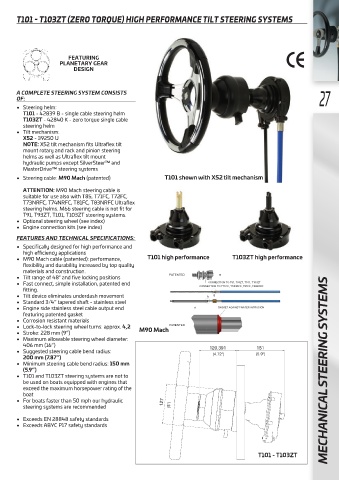

T101 - T103ZT (ZERO TORQUE) HIGH PERFORMANCE TILT STEERING SYSTEMS

FEATURING
PLANETARY GEAR
DESIGN

A COMPLETE STEERING SYSTEM CONSISTS
OF: 27
• Steering helm:
T101 - 42839 B - single cable steering helm
T103ZT - 42840 K - zero torque single cable
steering helm
• Tilt mechanism:
X52 - 39250 U
NOTE: X52 tilt mechanism fits Ultraflex tilt
mount rotary and rack and pinion steering
helms as well as Ultraflex tilt mount
hydraulic pumps except SilverSteer™ and
MasterDrive™ steering systems
• Steering cable: M90 Mach (patented) T101 shown with X52 tilt mechanism

ATTENTION: M90 Mach steering cable is
suitable for use also with T85, T71FC, T72FC,
T73NRFC, T74NRFC, T81FC, T83NRFC Ultraflex
steering helms. M66 steering cable is not fit for
T91, T93ZT, T101, T103ZT steering systems.
• Optional steering wheel (see index)
• Engine connection kits (see index)
FEATURES AND TECHNICAL SPECIFICATIONS:
• Specifically designed for high performance and
high efficiency applications
• M90 Mach cable (patented): performance, T101 high performance T103ZT high performance
flexibility and durability increased by top quality
materials and construction.

• Tilt range of 48° and five locking positions PATENTED B ( 2 : 1 )
• Fast connect, simple installation, patented end CONNECTION TO T71FC, T73NRFC, T81FC, T83NRFC
CONNECTION TO T91, T93ZT, T101, T103ZT
fitting.
• Tilt device eliminates underdash movement A B
• Standard 3/4” tapered shaft - stainless steel
• Engine side stainless steel cable output end A ( 5 : 1 ) GASKET AGAINST WATER INTRUSION
featuring patented gasket
• Corrosion resistant materials
• Lock-to-lock steering wheel turns: approx. 4,2 M90 Mach PATENTED
• Stroke: 228 mm (9”)
• Maximum allowable steering wheel diameter:
406 mm (16”)
• Suggested steering cable bend radius: 120.391 151
200 mm (7.87”) (4.72") (5.9")
• Minimum steering cable bend radius: 150 mm
(5.9”) MECHANICAL STEERING SYSTEMS
• T101 and T103ZT steering systems are not to
be used on boats equipped with engines that
exceed the maximum horsepower rating of the
boat
• For boats faster than 50 mph our hydraulic 127
steering systems are recommended (5")

• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards

T101 - T103ZT
