P. 24

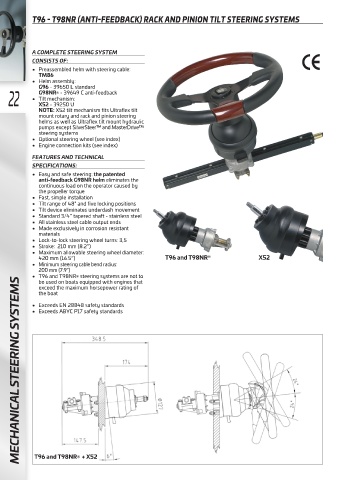

T96 - T98NR (ANTI-FEEDBACK) RACK AND PINION TILT STEERING SYSTEMS
A COMPLETE STEERING SYSTEM
CONSISTS OF:
• Preassembled helm with steering cable:
TM86
• Helm assembly:
G96 - 39650 L standard
22 • Tilt mechanism:
G98NR ® - 39649 C anti-feedback
X52 - 39250 U
NOTE: X52 tilt mechanism fits Ultraflex tilt
mount rotary and rack and pinion steering
helms as well as Ultraflex tilt mount hydraulic
pumps except SilverSteer™ and MasterDrive™
steering systems
• Optional steering wheel (see index)
• Engine connection kits (see index)
FEATURES AND TECHNICAL
SPECIFICATIONS:
• Easy and safe steering: the patented
anti-feedback G98NR helm eliminates the
continuous load on the operator caused by
the propeller torque
• Fast, simple installation
• Tilt range of 48° and five locking positions
• Tilt device eliminates underdash movement
• Standard 3/4” tapered shaft - stainless steel
• All stainless steel cable output ends
• Made exclusively in corrosion resistant
materials
• Lock-to-lock steering wheel turns: 3,5
• Stroke: 210 mm (8.2”)
• Maximum allowable steering wheel diameter:
420 mm (16.5”) T96 and T98NR ® X52
• Minimum steering cable bend radius:
200 mm (7.9”)
• T96 and T98NR ® steering systems are not to
MECHANICAL STEERING SYSTEMS
be used on boats equipped with engines that
exceed the maximum horsepower rating of
the boat
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
T96 and T98NR ® + X52
