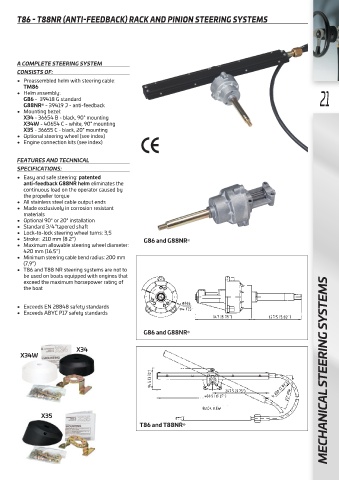

Page 23 - ULTRAFLEX Katalog 2021

T86 - T88NR (ANTI-FEEDBACK) RACK AND PINION STEERING SYSTEMS

A COMPLETE STEERING SYSTEM
CONSISTS OF:
• Preassembled helm with steering cable:
TM86
• Helm assembly:
G86 - 39418 G standard 21
G88NR - 39419 J - anti-feedback
®
• Mounting bezel:
X34 - 36654 B - black, 90° mounting
X34W - 40654 C - white, 90° mounting
X35 - 36655 C - black, 20° mounting
• Optional steering wheel (see index)
• Engine connection kits (see index)

FEATURES AND TECHNICAL
SPECIFICATIONS:
• Easy and safe steering: patented
anti-feedback G88NR helm eliminates the
continuous load on the operator caused by
the propeller torque
• All stainless steel cable output ends
• Made exclusively in corrosion resistant
materials
• Optional 90° or 20° installation
• Standard 3/4”tapered shaft
• Lock-to-lock steering wheel turns: 3,5
• Stroke: 210 mm (8.2”) G86 and G88NR
®
• Maximum allowable steering wheel diameter:
420 mm (16.5”)
• Minimum steering cable bend radius: 200 mm
(7,9”)
• T86 and T88 NR steering systems are not to
be used on boats equipped with engines that
exceed the maximum horsepower rating of
the boat

• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards

G86 and G88NR
®

X34
X34W MECHANICAL STEERING SYSTEMS

X35
T86 and T88NR
®
