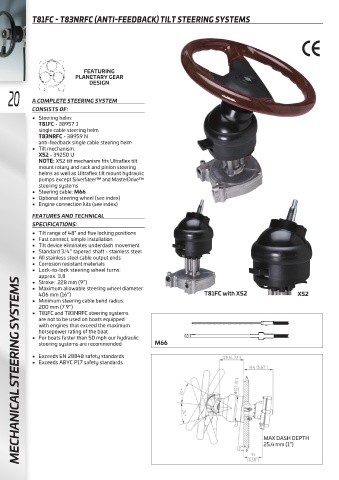

T81FC - T83NRFC (ANTI-FEEDBACK) TILT STEERING SYSTEMS
FEATURING
PLANETARY GEAR
DESIGN
20 A COMPLETE STEERING SYSTEM
CONSISTS OF:
• Steering helm:
T81FC - 38957 J
single cable steering helm
T83NRFC - 38959 N
anti-feedback single cable steering helm
• Tilt mechanism:
X52 - 39250 U
NOTE: X52 tilt mechanism fits Ultraflex tilt
mount rotary and rack and pinion steering
helms as well as Ultraflex tilt mount hydraulic
pumps except SilverSteer™ and MasterDrive™
steering systems
• Steering cable: M66
• Optional steering wheel (see index)
• Engine connection kits (see index)
FEATURES AND TECHNICAL
SPECIFICATIONS:
• Tilt range of 48° and five locking positions
• Fast connect, simple installation
• Tilt device eliminates underdash movement
• Standard 3/4” tapered shaft - stainless steel
• All stainless steel cable output ends
• Corrosion resistant materials
• Lock-to-lock steering wheel turns:
approx. 3,8
MECHANICAL STEERING SYSTEMS
• Stroke: 228 mm (9”)
• Maximum allowable steering wheel diameter:
406 mm (16”) T81FC with X52 X52
• Minimum steering cable bend radius:
200 mm (7.9”)
• T81FC and T83NRFC steering systems
are not to be used on boats equipped
with engines that exceed the maximum
horsepower rating of the boat
• For boats faster than 50 mph our hydraulic
steering systems are recommended M66
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
MAX DASH DEPTH
25,4 mm (1”)
