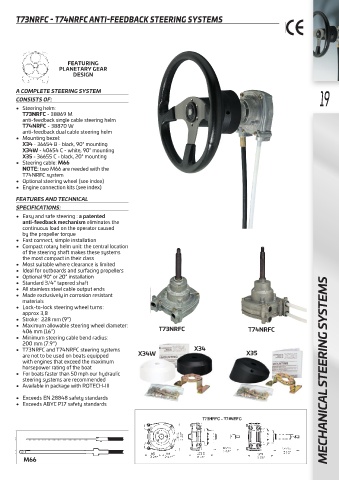

T73NRFC - T74NRFC ANTI-FEEDBACK STEERING SYSTEMS
FEATURING
PLANETARY GEAR
DESIGN
A COMPLETE STEERING SYSTEM
CONSISTS OF: 19
• Steering helm:
T73NRFC - 38869 M
anti-feedback single cable steering helm
T74NRFC - 38870 W
anti-feedback dual cable steering helm
• Mounting bezel:
X34 - 36654 B - black, 90° mounting
X34W - 40654 C - white, 90° mounting
X35 - 36655 C - black, 20° mounting
• Steering cable: M66
NOTE: two M66 are needed with the
T74NRFC system
• Optional steering wheel (see index)
• Engine connection kits (see index)
FEATURES AND TECHNICAL
SPECIFICATIONS:
• Easy and safe steering : a patented
anti-feedback mechanism eliminates the
continuous load on the operator caused
by the propeller torque
• Fast connect, simple installation
• Compact rotary helm unit: the central location
of the steering shaft makes these systems
the most compact in their class
• Most suitable where clearance is limited
• Ideal for outboards and surfacing propellers
• Optional 90° or 20° installation
• Standard 3/4” tapered shaft
• All stainless steel cable output ends
• Made exclusively in corrosion resistant
materials
• Lock-to-lock steering wheel turns:
approx 3,8
• Stroke: 228 mm (9”)
• Maximum allowable steering wheel diameter:
406 mm (16”) T73NRFC T74NRFC
• Minimum steering cable bend radius:
200 mm (7.9”)
• T73NRFC and T74NRFC steering systems X34
are not to be used on boats equipped X34W X35
with engines that exceed the maximum
horsepower rating of the boat
• For boats faster than 50 mph our hydraulic MECHANICAL STEERING SYSTEMS
steering systems are recommended
• Available in package with ROTECH-III
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
M66
