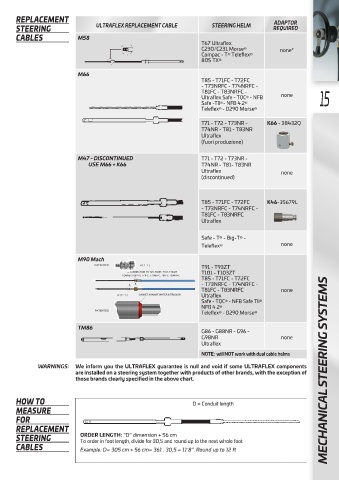

P. 17
REPLACEMENT ADAPTOR
STEERING ULTRAFLEX REPLACEMENT CABLE STEERING HELM REQUIRED
CABLES M58
T67 Ultraflex
C230/C231 Morse ® none*
Compac - T ® Teleflex ®
805 TX ®
M66
T85 - T71FC - T72FC
- T73NRFC - T74NRFC -
T81FC - T83NRFC -
Ultraflex Safe - TQC ® - NFB none 15
Safe -TII ® - NFB 4.2 ®
Teleflex ® - D290 Morse ®
T71 - T72 - T73NR - K66 - 38432Q
T74NR - T81 - T83NR
Ultraflex
(fuori produzione)
M47 - DISCONTINUED T71 - T72 - T73NR -
USE M66 + K66 T74NR - T81- T83NR
Ultraflex none
(discontinued)
T85 - T71FC - T72FC K46-35679L
- T73NRFC - T74NRFC -
T81FC - T83NRFC
Ultraflex
Safe - T ® - Big-T ® -
Teleflex ® none
M90 Mach
T91 - T93ZT
PATENTED B ( 2 : 1 )
CONNECTION TO T91, T93ZT, T101, T103ZT T101 - T103ZT
CONNECTION TO T71FC, T73NRFC, T81FC, T83NRFC
T85 - T71FC - T72FC
A B - T73NRFC - T74NRFC -
T81FC - T83NRFC none
A ( 5 : 1 ) GASKET AGAINST WATER INTRUSION Ultraflex
Safe - TQC ® - NFB Safe TII ®
NFB 4.2 ®
PATENTED
Teleflex ® - D290 Morse ®
TM86
G86 - G88NR - G96 -
G98NR none
Ultraflex
NOTE: will NOT work with dual cable helms
WARNINGS: We inform you the ULTRAFLEX guarantee is null and void if some ULTRAFLEX components
are installed on a steering system together with products of other brands, with the exception of MECHANICAL STEERING SYSTEMS
those brands clearly specified in the above chart.
HOW TO D = Conduit length
MEASURE
FOR
REPLACEMENT
STEERING ORDER LENGTH: “D” dimension + 56 cm
To order in foot length, divide for 30,5 and round up to the next whole foot
CABLES Example: D= 305 cm + 56 cm= 361 : 30,5 = 11’8”. Round up to 12 ft
