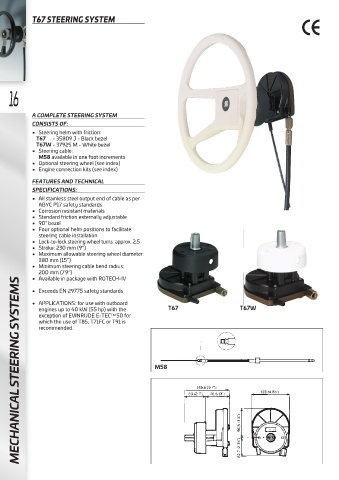

T67 STEERING SYSTEM
16
A COMPLETE STEERING SYSTEM
CONSISTS OF:
• Steering helm with friction:
T67 - 35809 J - Black bezel
T67W - 37925 M - White bezel
• Steering cable:
M58 available in one foot increments
• Optional steering wheel (see index)
• Engine connection kits (see index)
FEATURES AND TECHNICAL
SPECIFICATIONS:
• All stainless steel output end of cable as per
ABYC P17 safety standards
• Corrosion resistant materials
• Standard friction externally adjustable
• 90° bezel
• Four optional helm positions to facilitate
steering cable installation
• Lock-to-lock steering wheel turns: approx. 2,5
• Stroke: 230 mm (9”)
• Maximum allowable steering wheel diameter:
380 mm (15”)
• Minimum steering cable bend radius:
200 mm (7.9”)
• Available in package with ROTECH-IV
MECHANICAL STEERING SYSTEMS
• Exceeds EN 29775 safety standards
• APPLICATIONS: for use with outboard
engines up to 40 kW (55 hp) with the T67 T67W
exception of EVINRUDE E-TEC TM 50 for
which the use of T85, T71FC or T91 is
recommended.
M58
