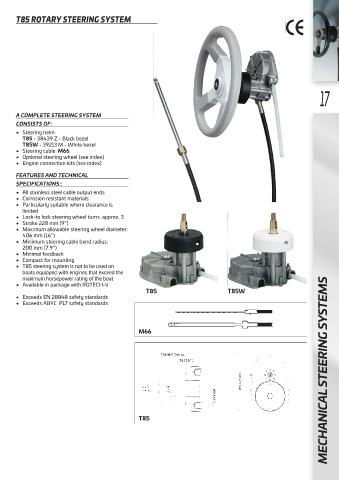

T85 ROTARY STEERING SYSTEM
17
A COMPLETE STEERING SYSTEM
CONSISTS OF:
• Steering helm:
T85 - 38439 Z - Black bezel
T85W - 39213 M - White bezel
• Steering cable: M66
• Optional steering wheel (see index)
• Engine connection kits (see index)
FEATURES AND TECHNICAL
SPECIFICATIONS::
• All stainless steel cable output ends
• Corrosion resistant materials
• Particularly suitable where clearance is
limited
• Lock-to lock steering wheel turns: approx. 3
• Stroke 228 mm (9”)
• Maximum allowable steering wheel diameter:
406 mm (16”)
• Minimum steering cable bend radius:
200 mm (7.9”)
• Minimal feedback
• Compact for mounting
• T85 steering system is not to be used on
boats equipped with engines that exceed the
maximum horsepower rating of the boat
• Available in package with ROTECH-V
T85 T85W
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
M66 MECHANICAL STEERING SYSTEMS
T85
