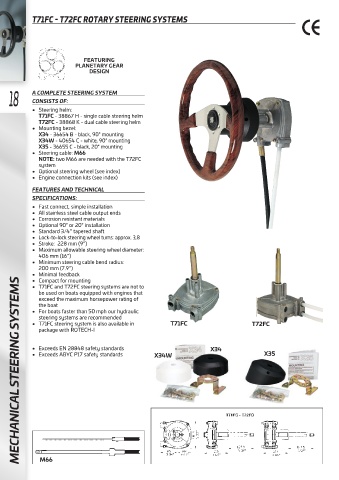

T71FC - T72FC ROTARY STEERING SYSTEMS

FEATURING
PLANETARY GEAR
DESIGN

18 A COMPLETE STEERING SYSTEM

CONSISTS OF:
• Steering helm:
T71FC - 38867 H - single cable steering helm
T72FC - 38868 K - dual cable steering helm
• Mounting bezel:
X34 - 36654 B - black, 90° mounting
X34W - 40654 C - white, 90° mounting
X35 - 36655 C - black, 20° mounting
• Steering cable: M66
NOTE: two M66 are needed with the T72FC
system
• Optional steering wheel (see index)
• Engine connection kits (see index)

FEATURES AND TECHNICAL
SPECIFICATIONS:
• Fast connect, simple installation
• All stainless steel cable output ends
• Corrosion resistant materials
• Optional 90° or 20° installation
• Standard 3/4” tapered shaft
• Lock-to-lock steering wheel turns: approx. 3,8
• Stroke: 228 mm (9”)
• Maximum allowable steering wheel diameter:
406 mm (16”)
• Minimum steering cable bend radius:
200 mm (7.9”)
• Minimal feedback
• Compact for mounting
MECHANICAL STEERING SYSTEMS
• T71FC and T72FC steering systems are not to
be used on boats equipped with engines that
exceed the maximum horsepower rating of
the boat
• For boats faster than 50 mph our hydraulic
steering systems are recommended
• T71FC steering system is also available in T71FC T72FC
package with ROTECH-I

• Exceeds EN 28848 safety standards X34
• Exceeds ABYC P17 safety standards X34W X35

M66
