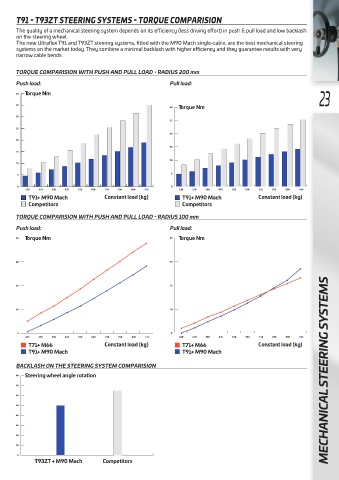

T91 - T93ZT STEERING SYSTEMS - TORQUE COMPARISION

       The quality of a mechanical steering system depends on its efficiency (less driving effort) in push & pull load and low backlash
       on the steering wheel.
       The new Ultraflex T91 and T93ZT steering systems, fitted with the M90 Mach single-cable, are the best mechanical steering
       systems on the market today. They combine a minimal backlash with higher efficiency and they guarantee results with very
       narrow cable bends.


       TORQUE COMPARISION WITH PUSH AND PULL LOAD - RADIUS 200 mm
       Push load:                                            Pull load:

          Torque Nm
       40                                                                                                        23
       35                                                       Torque Nm
                                                             30
       30
                                                             25
       25
                                                             20
       20
                                                             15
       15
                                                             10
       10
                                                             5
       5
       0                                                     0
          230  310  390  470  550  630  710  790  860  940      230  310  390  470  550  630  710  790  860  940
           T91+ M90 Mach              Constant load (kg)         T91+ M90 Mach              Constant load (kg)
           Competitors                                           Competitors

       TORQUE COMPARISION WITH PUSH AND PULL LOAD - RADIUS 100 mm
       Push load:                                            Pull load:
          Torque Nm                                             Torque Nm
       25                                                    25



       20                                                    20



       15                                                    15




       10                                                    10



       5                                                     5
          230  310  390  470  550  630  710  790  860  940      230  310  390  470  550  630  710  790  860  940
           T71+ M66                   Constant load (kg)         T71+ M66                   Constant load (kg)
           T91+ M90 Mach                                         T91+ M90 Mach

       BACKLASH ON THE STEERING SYSTEM COMPARISION
          Steering wheel angle rotation                                                                             MECHANICAL STEERING SYSTEMS
       80
       70
       60

       50
       40
       30
       20
       10

       0
             T93ZT + M90 Mach        Competitors
   20   21   22   23   24   25   26   27   28   29   30
