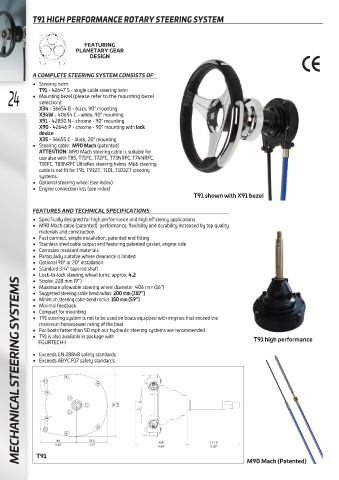

Page 26 - ULTRAFLEX Katalog 2021

T91 HIGH PERFORMANCE ROTARY STEERING SYSTEM

FEATURING
PLANETARY GEAR
DESIGN

A COMPLETE STEERING SYSTEM CONSISTS OF:
• Steering helm:
24 • Mounting bezel (please refer to the mounting bezel
T91 - 42647 S - single cable steering helm
selection):
X34 - 36654 B - black, 90° mounting
X34W - 40654 C - white, 90° mounting
X91 - 42850 N - chrome - 90° mounting
X90 - 42646 P - chrome - 90° mounting with lock
device
X35 - 36655 C - black, 20° mounting
• Steering cable: M90 Mach (patented)
ATTENTION: M90 Mach steering cable is suitable for
use also with T85, T71FC, T72FC, T73NRFC, T74NRFC,
T81FC, T83NRFC Ultraflex steering helms. M66 steering
cable is not fit for T91, T93ZT, T101, T103ZT steering
systems.
• Optional steering wheel (see index)
• Engine connection kits (see index)
T91 shown with X91 bezel

FEATURES AND TECHNICAL SPECIFICATIONS:
• Specifically designed for high performance and high efficiency applications
• M90 Mach cable (patented): performance, flexibility and durability increased by top quality
materials and construction.
• Fast connect, simple installation, patented end fitting.
• Stainless steel cable output end featuring patented gasket, engine side
• Corrosion resistant materials
• Particularly suitable where clearance is limited
• Optional 90° or 20° installation
• Standard 3/4” tapered shaft
• Lock-to-lock steering wheel turns: approx. 4,2
MECHANICAL STEERING SYSTEMS
• Stroke: 228 mm (9”)
• Maximum allowable steering wheel diameter: 406 mm (16”)
• Suggested steering cable bend radius: 200 mm (7.87”)
• Minimum steering cable bend radius: 150 mm (5.9”)
• Minimal feedback
• Compact for mounting
• T91 steering system is not to be used on boats equipped with engines that exceed the
maximum horsepower rating of the boat
• For boats faster than 50 mph our hydraulic steering systems are recommended
• T91 is also available in package with T91 high performance
FOURTECH-I

• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards

150 5.9"

88 73.5 126 127.5
3.45" 2.9"
4.95" 5.02"
T91
M90 Mach (Patented)
