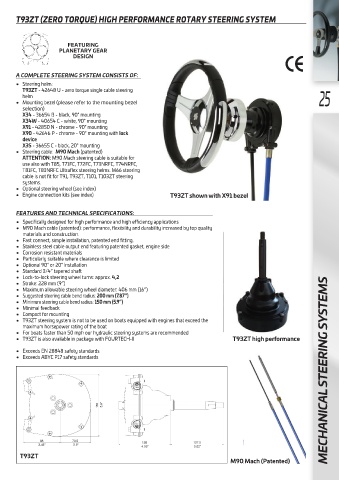

T93ZT (ZERO TORQUE) HIGH PERFORMANCE ROTARY STEERING SYSTEM




                         FEATURING
                      PLANETARY GEAR
                           DESIGN


       A COMPLETE STEERING SYSTEM CONSISTS OF:
       •  Steering helm:
          T93ZT - 42648 U - zero torque single cable steering
         helm                                                                                                    25
       •  Mounting bezel (please refer to the mounting bezel
         selection)
          X34 - 36654 B - black, 90° mounting
          X34W - 40654 C - white, 90° mounting
          X91 - 42850 N - chrome - 90° mounting
          X90 - 42646 P - chrome - 90° mounting with lock
         device
          X35 - 36655 C - black, 20° mounting
       •  Steering cable:  M90 Mach (patented)
          ATTENTION: M90 Mach steering cable is suitable for
         use also with T85, T71FC, T72FC, T73NRFC, T74NRFC,
         T81FC, T83NRFC Ultraflex steering helms. M66 steering
         cable is not fit for T91, T93ZT, T101, T103ZT steering
         systems.
       •  Optional steering wheel (see index)
       •  Engine connection kits (see index)                 T93ZT shown with X91 bezel


       FEATURES AND TECHNICAL SPECIFICATIONS:
       •  Specifically designed for high performance and high efficiency applications
       •  M90 Mach cable (patented): performance, flexibility and durability increased by top quality
         materials and construction.
       •  Fast connect, simple installation, patented end fitting.
       •  Stainless steel cable output end featuring patented gasket, engine side
       •  Corrosion resistant materials
       •  Particularly suitable where clearance is limited
       •  Optional 90° or 20° installation
       •  Standard 3/4” tapered shaft
       •  Lock-to-lock steering wheel turns: approx. 4,2
       •  Stroke: 228 mm (9”)
       •  Maximum allowable steering wheel diameter: 406 mm (16”)
       •  Suggested steering cable bend radius: 200 mm (7.87”)
       •  Minimum steering cable bend radius: 150 mm (5.9”)
       •  Minimal feedback
       •  Compact for mounting
       •  T93ZT steering system is not to be used on boats equipped with engines that exceed the
         maximum horsepower rating of the boat
       •  For boats faster than 50 mph our hydraulic steering systems are recommended
       •  T93ZT is also available in package with FOURTECH-II                      T93ZT high performance

       •  Exceeds EN 28848 safety standards
       •  Exceeds ABYC P17 safety standards                                                                         MECHANICAL STEERING SYSTEMS









                                   150  5.9"






               88         73.5                     126               127.5
               3.45"       2.9"
                                                   4.95"             5.02"
        T93ZT
                                                                                  M90 Mach (Patented)
