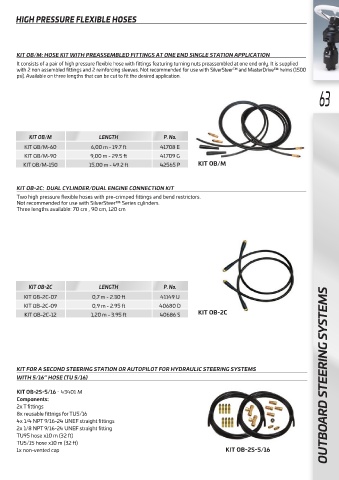

HIGH PRESSURE FLEXIBLE HOSES

KIT OB/M: HOSE KIT WITH PREASSEMBLED FITTINGS AT ONE END SINGLE STATION APPLICATION
It consists of a pair of high pressure flexible hose with fittings featuring turning nuts preassembled at one end only. It is supplied
with 2 non assembled fittings and 2 reinforcing sleeves. Not recommended for use with SilverSteer™ and MasterDrive™ helms (1500
psi). Available on three lengths that can be cut to fit the desired application.
63

KIT OB/M LENGTH P. No.
KIT OB/M-60 6,00 m - 19.7 ft 41708 E
KIT OB/M-90 9,00 m - 29.5 ft 41709 G
KIT OB/M-150 15,00 m - 49.2 ft 42565 P KIT OB/M

KIT OB-2C: DUAL CYLINDER/DUAL ENGINE CONNECTION KIT
Two high pressure flexible hoses with pre-crimped fittings and bend restrictors.
Not recommended for use with SilverSteer™ Series cylinders.
Three lengths available: 70 cm , 90 cm, 120 cm

KIT OB-2C LENGTH P. No.
KIT OB-2C-07 0,7 m - 2.30 ft 41149 U
KIT OB-2C-09 0,9 m - 2.95 ft 40680 D
KIT OB-2C-12 1,20 m - 3.95 ft 40686 S KIT OB-2C

KIT FOR A SECOND STEERING STATION OR AUTOPILOT FOR HYDRAULIC STEERING SYSTEMS
WITH 5/16” HOSE (TU 5/16) OUTBOARD STEERING SYSTEMS

KIT OB-2S-5/16 - 43401 M
Components:
2x T fittings
8x reusable fittnigs for TU5/16
4x 1/4 NPT 9/16-24 UNEF straight fittings
2x 1/8 NPT 9/16-24 UNEF straight fitting
TU95 hose x10 m (32 ft)
TU5/15 hose x10 m (32 ft)
1x non-vented cap KIT OB-2S-5/16
