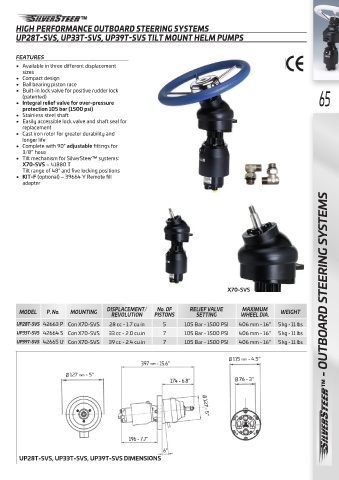

HIGH PERFORMANCE OUTBOARD STEERING SYSTEMS
UP28T-SVS, UP33T-SVS, UP39T-SVS TILT MOUNT HELM PUMPS
FEATURES
• Available in three different displacement
sizes
• Compact design
• Ball bearing piston race
• Built-in lock valve for positive rudder lock
(patented) 65
• Integral relief valve for over-pressure
protection 105 bar (1500 psi)
• Stainless steel shaft
• Easily accessible lock valve and shaft seal for
replacement
• Cast iron rotor for greater durability and
longer life
• Complete with 90° adjustable fittings for
3/8” hose
• Tilt mechanism for SilverSteer™ systems:
n X70-SVS – 41880 T
Tilt range of 48° and five locking positions
• KIT-F (optional) – 39664 Y Remote fill
adapter
X70-SVS - OUTBOARD STEERING SYSTEMS
No. OF
MAXIMUM
MODEL P. No. MOUNTING DISPLACEMENT/ PISTONS RELIEF VALVE WHEEL DIA. WEIGHT
SETTING
REVOLUTION
UP28T-SVS 42663 P Con X70-SVS 28 cc - 1.7 cu.in 5 105 Bar - 1500 PSI 406 mm - 16” 5 kg - 11 lbs
UP33T-SVS 42664 S Con X70-SVS 33 cc - 2.0 cu.in 7 105 Bar - 1500 PSI 406 mm - 16” 5 kg - 11 lbs
UP39T-SVS 42665 U Con X70-SVS 39 cc - 2.4 cu.in 7 105 Bar - 1500 PSI 406 mm - 16” 5 kg - 11 lbs
Ø 115 mm - 4.5”
397 mm - 15.6”
Ø 127 mm - 5”
174 - 6.8” Ø 127 - 5” Ø 76 - 3”
196 - 7.7”
6°
UP28T-SVS, UP33T-SVS, UP39T-SVS DIMENSIONS
