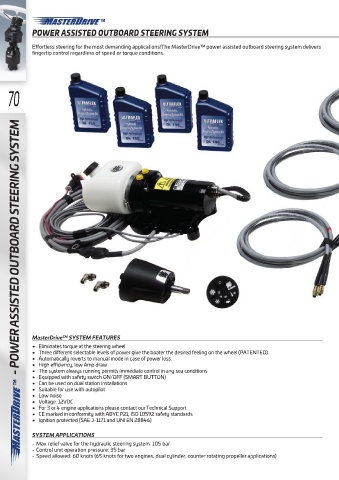

POWER ASSISTED OUTBOARD STEERING SYSTEM

Effortless steering for the most demanding applications!The MasterDrive™ power assisted outboard steering system delivers
fingertip control regardless of speed or torque conditions.

70

- POWER ASSISTED OUTBOARD STEERING SYSTEM

MasterDrive™ SYSTEM FEATURES
• Eliminates torque at the steering wheel
• Three different selectable levels of power give the boater the desired feeling on the wheel (PATENTED).
• Automatically reverts to manual mode in case of power loss.
• High efficiency, low Amp draw
• The system always running permits immediate control in any sea conditions
• Equipped with safety switch ON/OFF (SMART BUTTON)
TM • Can be used on dual station installations
• Suitable for use with autopilot
• Low noise
• Voltage: 12VDC
• For 3 or 4 engine applications please contact our Technical Support
• CE marked in conformity with ABYC P21, ISO 10592 safety standards
• Ignition protected (SAE J-1171 and UNI EN 28846)

SYSTEM APPLICATIONS
- Max relief valve for the hydraulic steering system: 105 bar
- Control unit operation pressure: 35 bar
- Speed allowed: 60 knots (65 knots for two engines, dual cylinder, counter rotating propeller applications)
