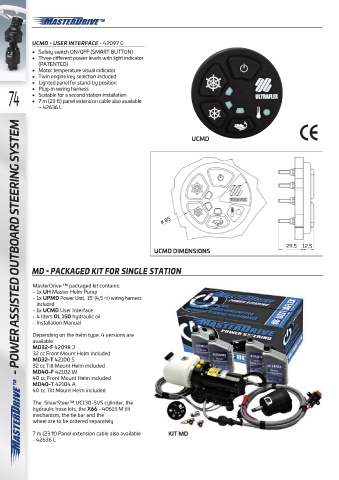

Page 76 - ULTRAFLEX Katalog 2021

TM

UCMD - USER INTERFACE - 42097 G
• Safety switch ON/OFF (SMART BUTTON)
• Three different power levels with light indicator
(PATENTED)
• Motor temperature visual indicator
• Twin engine key selection included
• Lighted panel for stand-by position
74 • Suitable for a second station installation
• Plug-in wiring harness
• 7 m (23 ft) panel extension cable also available
– 42636 L

- POWER ASSISTED OUTBOARD STEERING SYSTEM

UCMD

ø 85

29.5 12,5
UCMD DIMENSIONS

MD - PACKAGED KIT FOR SINGLE STATION

MasterDrive ™ packaged kit contains:
- 1x UH Master Helm Pump
- 1x UPMD Power Unit, 15’ (4,5 m) wiring harness
included
- 1x UCMD User Interface
- 4 liters OL 150 hydraulic oil
- Installation Manual

Depending on the helm type, 4 versions are
available:
MD32-F 42098 J
32 cc Front Mount Helm included
MD32-T 42100 S
32 cc Tilt Mount Helm included
MD40-F 42102 W
40 cc Front Mount Helm included
TM MD40-T 42104 A
40 cc Tilt Mount Helm included
The SilverSteer™ UC130-SVS cylinder, the
hydraulic hose kits, the X66 - 40613 M tilt
mechanism, the tie bar and the
wheel are to be ordered separately
7 m (23 ft) Panel extension cable also available KIT MD
- 42636 L
