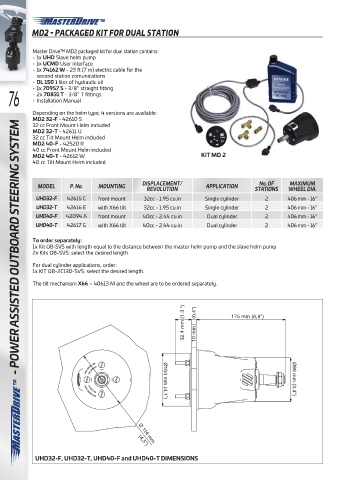

MD2 - PACKAGED KIT FOR DUAL STATION

Master Drive™ MD2 packaged kit for dual station contains:
- 1x UHD Slave helm pump
- 1x UCMD User interface
- 1x 74162 W - 23 ft (7 m) electric cable for the
second station comunications
- OL 150 1 liter of hydraulic oil
76 - 2x 70831 T - 3/8” T fittings
- 1x 70957 S - 3/8” straight fitting
- Installation Manual

Depending on the helm type, 4 versions are available:
MD2 32-F - 42610 S
- POWER ASSISTED OUTBOARD STEERING SYSTEM
32 cc Front Mount Helm included
MD2 32-T - 42611 U
32 cc Tilt Mount Helm included
MD2 40-F - 42520 R
40 cc Front Mount Helm included
MD2 40-T - 42612 W KIT MD 2
40 cc Tilt Mount Helm included

No. OF
MAXIMUM
MODEL P. No. MOUNTING DISPLACEMENT/ APPLICATION STATIONS WHEEL DIA.
REVOLUTION
UHD32-F 42615 C front mount 32cc - 1.95 cu.in Single cylinder 2 406 mm - 16”
UHD32-T 42616 E with X66 tilt 32cc - 1.95 cu.in Single cylinder 2 406 mm - 16”
UHD40-F 42094 A front mount 40cc - 2.44 cu.in Dual cylinder 2 406 mm - 16”
UHD40-T 42617 G with X66 tilt 40cc - 2.44 cu.in Dual cylinder 2 406 mm - 16”

To order separately:
1x Kit OB-SVS with length equal to the distance between the master helm pump and the slave helm pump
2x Kits OB-SVS: select the desired length

For dual cylinder applications, order:
1x KIT OB-2C130-SVS: select the desired length.
The tilt mechanism X66 – 40613 M and the wheel are to be ordered separately.

32.4 mm (1.3 “) 10 mm (0,4”) 175 mm (6,9”)

TM Ø Ø

86 mm (3,4”)
104 mm (4,1”)

Ø 114 mm
(4,5”)
UHD32-F, UHD32-T, UHD40-F and UHD40-T DIMENSIONS
