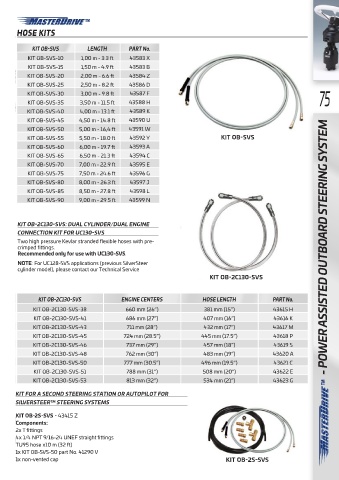

Page 77 - ULTRAFLEX Katalog 2021

TM
HOSE KITS

KIT OB-SVS LENGTH PART No.
KIT OB-SVS-10 1,00 m - 3.3 ft 43583 X
KIT OB-SVS-15 1,50 m - 4.9 ft 43583 B
KIT OB-SVS-20 2,00 m - 6.6 ft 43584 Z
KIT OB-SVS-25 2,50 m - 8.2 ft 43586 D
KIT OB-SVS-30 3,00 m - 9.8 ft 43587 F 75
KIT OB-SVS-35 3,50 m - 11.5 ft 43588 H
KIT OB-SVS-40 4,00 m - 13.1 ft 43589 K
KIT OB-SVS-45 4,50 m - 14.8 ft 43590 U
KIT OB-SVS-50 5,00 m - 16,4 ft 43591 W
KIT OB-SVS-55 5,50 m - 18.0 ft 43592 Y KIT OB-SVS
KIT OB-SVS-60 6,00 m - 19.7 ft 43593 A
KIT OB-SVS-65 6,50 m - 21.3 ft 43594 C
KIT OB-SVS-70 7,00 m - 22.9 ft 43595 E
KIT OB-SVS-75 7,50 m - 24.6 ft 43596 G
KIT OB-SVS-80 8,00 m - 26.3 ft 43597 J
KIT OB-SVS-85 8,50 m - 27.8 ft 43598 L
KIT OB-SVS-90 9,00 m - 29.5 ft 43599 N

KIT OB-2C130-SVS: DUAL CYLINDER/DUAL ENGINE
CONNECTION KIT FOR UC130-SVS
Two high pressure Kevlar stranded flexible hoses with pre-
crimped fittings. - POWER ASSISTED OUTBOARD STEERING SYSTEM
Recommended only for use with UC130-SVS.
NOTE: For UC128-SVS applications (previous SilverSteer
cylinder model), please contact our Technical Service
KIT OB-2C130-SVS

KIT OB-2C130-SVS ENGINE CENTERS HOSE LENGTH PART No.
KIT OB-2C130-SVS-38 660 mm (26”) 381 mm (15”) 43615 H
KIT OB-2C130-SVS-41 686 mm (27”) 407 mm (16”) 43616 K
KIT OB-2C130-SVS-43 711 mm (28”) 432 mm (17”) 43617 M
KIT OB-2C130-SVS-45 724 mm (28.5”) 445 mm (17.5”) 43618 P
KIT OB-2C130-SVS-46 737 mm (29”) 457 mm (18”) 43619 S
KIT OB-2C130-SVS-48 762 mm (30”) 483 mm (19”) 43620 A
KIT OB-2C130-SVS-50 777 mm (30.5”) 496 mm (19.5”) 43621 C
KIT OB-2C130-SVS-51 788 mm (31”) 508 mm (20”) 43622 E
KIT OB-2C130-SVS-53 813 mm (32”) 534 mm (21”) 43623 G TM

KIT FOR A SECOND STEERING STATION OR AUTOPILOT FOR
SILVERSTEER™ STEERING SYSTEMS

KIT OB-2S-SVS - 43415 Z
Components:
2x T fittings
4x 1/4 NPT 9/16-24 UNEF straight fittings
TU95 hose x10 m (32 ft)
1x KIT OB-SVS-50 part No. 41290 V
1x non-vented cap KIT OB-2S-SVS
