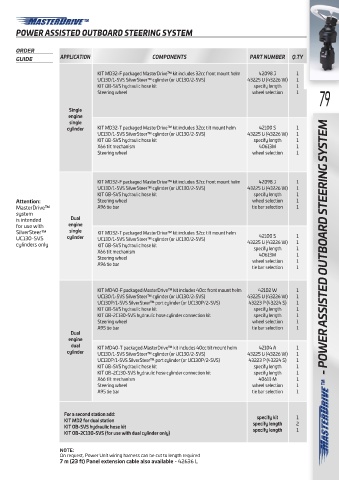

POWER ASSISTED OUTBOARD STEERING SYSTEM

ORDER
GUIDE APPLICATION COMPONENTS PART NUMBER Q.TY

KIT MD32-F packaged MasterDrive™ kit includes 32cc front mount helm 42098 J 1
UC130/1-SVS SilverSteer™ cylinder (or UC130/2-SVS) 43225 U (43226 W) 1
KIT OB-SVS hydraulic hose kit specify length 1
79
Steering wheel wheel selection 1

Single
engine
single
cylinder KIT MD32-T packaged MasterDrive™ kit includes 32cc tilt mount helm 42100 S 1
UC130/1-SVS SilverSteer™ cylinder (or UC130/2-SVS) 43225 U (43226 W) 1
KIT OB-SVS hydraulic hose kit specify length 1
X66 tilt mechanism 40613M 1
Steering wheel wheel selection 1

KIT MD32-F packaged MasterDrive™ kit includes 32cc front mount helm 42098 J 1
UC130/1-SVS SilverSteer™ cylinder (or UC130/2-SVS) 43225 U (43226 W) 1
KIT OB-SVS hydraulic hose kit specify length 1
Attention: Steering wheel wheel selection 1
MasterDrive™ A96 tie bar tie bar selection 1
system
is intended Dual
for use with engine
SilverSteer™ single KIT MD32-T packaged MasterDrive™ kit includes 32cc tilt mount helm
UC130-SVS cylinder UC130/1-SVS SilverSteer™ cylinder (or UC130/2-SVS) 42100 S 1
cylinders only KIT OB-SVS hydraulic hose kit 43225 U (43226 W) 1
X66 tilt mechanism specify length 1 - POWER ASSISTED OUTBOARD STEERING SYSTEM
Steering wheel 40613M 1
A96 tie bar wheel selection 1
tie bar selection 1

KIT MD40-F packaged MasterDrive™ kit includes 40cc front mount helm 42102 W 1
UC130/1-SVS SilverSteer™ cylinder (or UC130/2-SVS) 43225 U (43226 W) 1
UC130P/1-SVS SilverSteer™ port cylinder (or UC130P/2-SVS) 43223 P (43224 S) 1
KIT OB-SVS hydraulic hose kit specify length 1
KIT OB-2C130-SVS hydraulic hose cylinder connection kit specify length 1
Steering wheel wheel selection 1
A95 tie bar tie bar selection 1
Dual
engine
dual KIT MD40-T packaged MasterDrive™ kit includes 40cc tilt mount helm 42104 A 1
cylinder UC130/1-SVS SilverSteer™ cylinder (or UC130/2-SVS) 43225 U (43226 W) 1
UC130P/1-SVS SilverSteer™ port cylinder (or UC130P/2-SVS) 43223 P (43224 S) 1
KIT OB-SVS hydraulic hose kit specify length 1
KIT OB-2C130-SVS hydraulic hose cylinder connection kit specify length 1
X66 tilt mechanism 40613 M 1
Steering wheel wheel selection 1 TM
A95 tie bar tie bar selection 1

For a second station add: specify kit 1
KIT MD2 for dual station specify length 2
KIT OB-SVS hydraulic hose kit specify length 1
KIT OB-2C130-SVS (for use with dual cylinder only)

NOTE:
On request, Power Unit wiring harness can be cut to length required
7 m (23 ft) Panel extension cable also available - 42636 L
