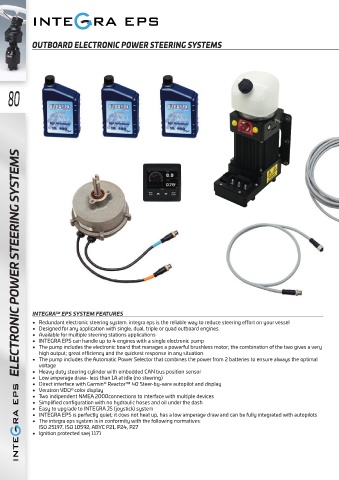

Page 82 - ULTRAFLEX Katalog 2021

INTE RA EPS

OUTBOARD ELECTRONIC POWER STEERING SYSTEMS

80

ELECTRONIC POWER STEERING SYSTEMS

INTEGRA™ EPS SYSTEM FEATURES
• Redundant electronic steering system. integra eps is the reliable way to reduce steering effort on your vessel
• Designed for any application with single, dual, triple or quad outboard engines.
• Available for multiple steering stations applications
• INTEGRA EPS can handle up to 4 engines with a single electronic pump
• The pump includes the electronic board that manages a powerful brushless motor; the combination of the two gives a very
high output; great efficiency and the quickest response in any situation.
• The pump includes the Automatic Power Selector that combines the power from 2 batteries to ensure always the optimal
voltage
• Heavy duty steering cylinder with embedded CAN bus position sensor
• Low amperage draw- less than 1A at idle (no steering)
• Direct interface with Garmin Reactor™ 40 Steer-by-wire autopilot and display
®
INTE RA EPS • Simplified configuration with no hydraulic hoses and oil under the dash
• Veratron VDO color display
®
• Two indipendent NMEA 2000connections to interface with multiple devices
• Easy to upgrade to INTEGRA JS (joystick) system
• INTEGRA EPS is perfectly quiet; it does not heat up, has a low amperage draw and can be fully integrated with autopilots
• The integra eps system is in conformity with the following normatives:

ISO 25197, ISO 10592, ABYC P21, P24, P27
• Ignition protected saej 1171
