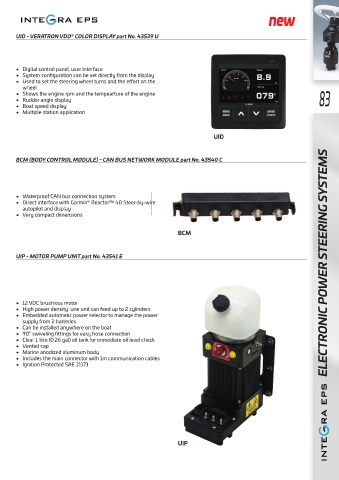

Page 85 - ULTRAFLEX Katalog 2021

new
INTE RA EPS

UID - VERATRON VDO COLOR DISPLAY part No. 43539 U
®

• Digital control panel, user interface
• System configuration can be set directly from the display
• Used to set the steering wheel turns and the effort on the
wheel
• Shows the engine rpm and the tempearture of the engine 83
• Rudder angle display
• Boat speed display
• Multiple station application

UID

BCM (BODY CONTROL MODULE) - CAN BUS NETWORK MODULE part No. 43540 C

• Waterproof CAN bus connection system
• Direct interface with Garmin Reactor™ 40 Steer-by-wire
®
autopilot and display
• Very compact dimensions

BCM

UIP - MOTOR PUMP UNIT part No. 43541 E ELECTRONIC POWER STEERING SYSTEMS

• 12 VDC brushless motor
• High power density: une unit can feed up to 2 cylinders
• Embedded automatic power selector to manage the power
supply from 2 batteries
• Can be installed anywhere on the boat
• 90° swiveling fittings for easy hose connection
• Clear 1 litre (0.26 gal) oil tank for immediate oil level check
• Vented cap
• Marine anodized aluminum body
• Includes the main connector with 1m communication cables
• Ignition Protected SAE J1171

INTE RA EPS

UIP
