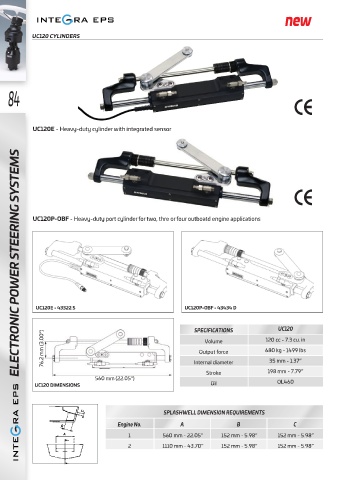

UC120E - Heavy-duty cylinder with integrated sensor
ELECTRONIC POWER STEERING SYSTEMS
UC120P-OBF - Heavy-duty port cylinder for two, thre or four outboatd engine applications
UC120E - 43322 S UC120P-OBF - 43434 D
SPECIFICATIONS UC120
76.2 mm (3.00") Output force 680 kg - 1499 lbs
120 cc - 7.3 cu. in
Volume
35 mm - 1.37”
Internal diameter
Stroke 198 mm - 7.79”
560 mm (22.05") Oil OL460
UC120 DIMENSIONS
INTE RA EPS Engine No. 1110 mm - 43.70” 152 mm - 5.98” 152 mm - 5.98”
SPLASHWELL DIMENSION REQUIREMENTS
B
C
A
1
560 mm - 22.05”
2
152 mm - 5.98”
152 mm - 5.98”
