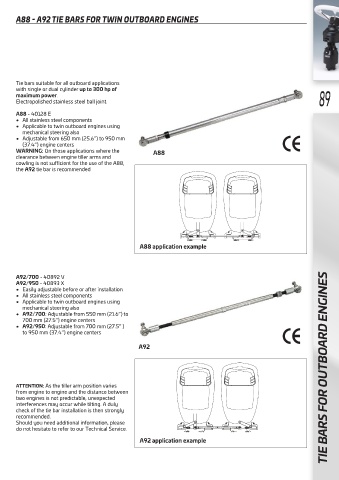

A88 - A92 TIE BARS FOR TWIN OUTBOARD ENGINES

Tie bars suitable for all outboard applications
with single or dual cylinder up to 300 hp of
maximum power. 89
Electropolished stainless steel ball joint.

A88 - 40128 E
• All stainless steel components
• Applicable to twin outboard engines using
mechanical steering also
• Adjustable from 650 mm (25.6”) to 950 mm
(37.4”) engine centers
WARNING: On those applications where the A88
clearance between engine tiller arms and
cowling is not sufficient for the use of the A88,
the A92 tie bar is recommended

A88 application example

A92/700 - 40892 V
A92/950 - 40893 X
• Easily adjustable before or after installation
• All stainless steel components
• Applicable to twin outboard engines using
mechanical steering also
• A92/700: Adjustable from 550 mm (21.6”) to
700 mm (27.5”) engine centers
• A92/950: Adjustable from 700 mm (27.5” )
to 950 mm (37.4”) engine centers

A92

ATTENTION: As the tiller arm position varies TIE BARS FOR OUTBOARD ENGINES
from engine to engine and the distance between
two engines is not predictable, unexpected
interferences may occur while tilting. A duly
check of the tie bar installation is then strongly
recommended.
Should you need additional information, please
do not hesitate to refer to our Technical Service.

A92 application example
