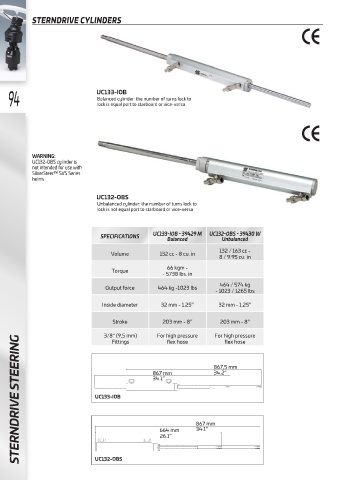

STERNDRIVE CYLINDERS
94 UC133-IOB
Balanced cylinder: the number of turns lock to
lock is equal port to starboard or vice-versa
WARNING:
UC132-OBS cylinder is
not intended for use with
SilverSteer™ SVS Series
helms
UC132-OBS
Unbalanced cylinder: the number of turns lock to
lock is not equal port to starboard or vice-versa
SPECIFICATIONS UC133-IOB - 39429 M UC132-OBS - 39430 W
Balanced
Unbalanced
Volume 132 cc - 8 cu. in 132 / 163 cc -
8 / 9.95 cu. in
Torque 66 kgm -
- 5738 lbs. in
464 / 574 kg
Output force 464 kg -1023 lbs - 1023 / 1265 lbs
Inside diameter 32 mm - 1.25” 32 mm - 1.25”
Stroke 203 mm - 8” 203 mm - 8”
3/8” (9,5 mm) For high pressure For high pressure
STERNDRIVE STEERING
Fittings flex hose flex hose
867,5 mm
867 mm 34.2”
34.1”
UC133-IOB
867 mm
664 mm 34.1”
26.1”
UC132-OBS
