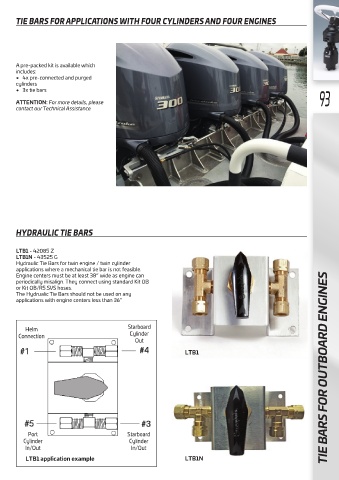

TIE BARS FOR APPLICATIONS WITH FOUR CYLINDERS AND FOUR ENGINES

A pre-packed kit is available which
includes:
• 4x pre-connected and purged
cylinders
• 3x tie bars 93

ATTENTION: For more details, please
contact our Technical Assistance

HYDRAULIC TIE BARS

LTB1 - 42085 Z
LTB1N - 43525 G
Hydraulic Tie Bars for twin engine / twin cylinder
applications where a mechanical tie bar is not feasible.
Engine centers must be at least 38” wide as engine can
periodically misalign. They connect using standard Kit OB
or Kit OB/R5.SVS hoses.
The Hydrualic Tie Bars should not be used on any
applications with engine centers less than 36”

Helm Starboard
Connection Cylinder
Out
LTB1 TIE BARS FOR OUTBOARD ENGINES

Port Starboard
Cylinder Cylinder
In/Out In/Out

LTB1 application example LTB1N
